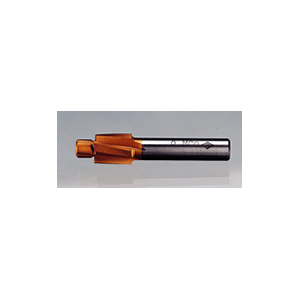

Immerse Milling (straight shank)

● TiN coating

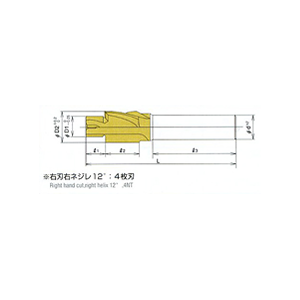

<Specification>

● Nominal diameter (mm): 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20

● Guided length (L1, mm): 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 21

● Blade length (L2, mm): 7, 10, 13, 15, 16, 20, 22, 24, 26

● Shank Length (L3, mm): 27, 28, 30, 32, 38, 43, 46, 51

● Total length (mm): 37, 44, 51, 58, 67, 748, 83, 90, 100, 104, 109

● Shank diameter (mm): 6, 8, 10, 12, 16

● External diameter (mm): 5.9, 7.4, 8.9, 10.4, 13.4, 16.8, 18.8, 24, 26, 28, 30

<Features>

● Helix angle: 12 ° right-hand helix

<Use for>

● For spot facing of hexagon socket head cap screws

<Note>
