● MCO material (cobalt high speed steel)
<Specification>

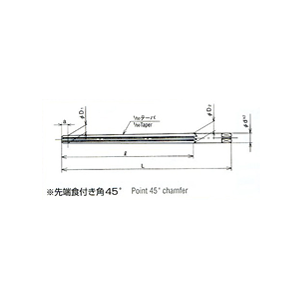

● Chamfer tip angle: 45 °
● Twist angle: Straight
● Tooth diameter (D1, mm): 0.8 to 2.0 by 0.1mm interval, 2.0, 2.5, 3.0 to 30 by 1.0mm interval, 32, 35, 36, 39, 40, 42, 45, 48, 50
● Large diameter (D2, mm): 1.18, 1.28, 1.46, 1.56, 1.74, 1.84, 2.04, 2.14, 2.24, 2.56, 2.76, 2.86, 3.36, 4.16, 5.42, 6.56, 8.0, 9.24, 10.8, 12.0, 13.4, 14.3, 15.6, 17, 18, 19.2, 20.4, 21.5, 22.6, 23.8, 24.8 ,25.9, 27.1, 28.3, 29.5, 30.7, 31.9, 33, 34, 35.1, 36.1, 38.1, 41.2, 42.3, 44.4, 46.5, 48.5, 51.6, 54.6, 56.9
● Shank (d, mm): 1.5, 2.0, 2.5, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 23, 24, 25, 28, 29, 30, 31, 32, 34, 37, 38, 40, 44, 46, 48, 50
● Tooth length (mm): 24, 28, 32, 37, 48, 63, 76, 83, 105, 117, 145, 155, 175, 190, 210, 220, 230, 235, 240 to 310 by 10mm interval, 315, 320, 325, 330, 335, 340, 345, 360
● Length (L, mm): 42, 46, 50, 57, 68, 85, 100, 110, 135, 152, 180, 190, 215, 230, 255, 270 to 460 by 10mm interval
● Reference length (a, mm): 5, 10, 15
● Number of teeth: 4, 6, 8, 10, 12, 14
<Features>
<Use for>

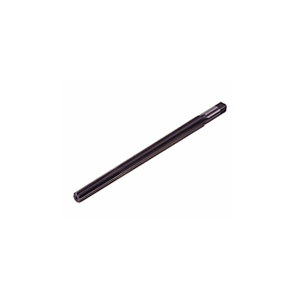

● For processing a taper pin hole
<Note>
