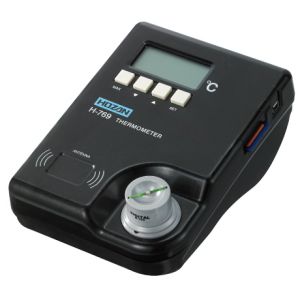

Equipped with the world's first three functions as soldering iron thermometer.
<Specification>
● Measuring range: 0 ~ 500 ℃
● Sensor: H-768
● Resolution: 1 ℃
● Accuracy: 0 ~ 100 ℃ ± (0.1% rdg +2 dgt), 101 ~ 500 ℃ ± (1.0% rdg +1 dgt)
● Maximum Display: 999 count
● Power supply: AA batteries (R6) × 4 (included)
● Battery life: about 75 hours
● Dimensions: 110 (W) × 66 (H) × 155 (D) mm
● Weight: 430g
● Bundled software support OS: 7 Japanese version Windows (32bit), Windows Vista Japanese version + SP1 (32bit), Windows XP Japanese version + SP2 above (32bit)
<Features>
● Recording function to save measurement results to SD.
● Pass-fail judgment function to display OK / NG from the measurement results.
● Soldering iron identification function to manage the soldering iron by using the IC tag.
● Measurement results are saved in CSV format to the SD card, OK / NG and individual number of the soldering iron is recorded as while.
● It is possible to manage multiple soldering iron by saving all the temperature recorded by hand-writing and judgement of pass or fail(which is all managed by hand-writing by operator up to now), also by putting ID (individual number) to trowel by IC tag.
<Use for>
<Note>
● sensor（H-768）,5 pieces of IC tag, 5 pieces of IC tag seal, 4 AA batteries, SD card (2GB), USB-mini USB (B plug) cable included
※ Managing 5 soldering iron by IC tag of standard accessory (5 pieces). And by adding H-769-1 IC tag(5 pieces),you can manage up to 99 soldering irons.
