JIS Standard Mark:Japanese Industrial Standard certified ＪＩＳ Ｂ 7524

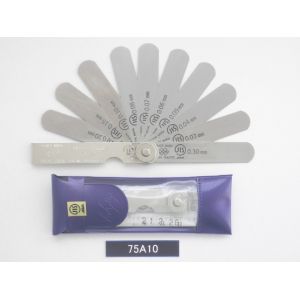

<Specification>
Size of leaf:12.7mm Width X Length 75mm
Shape of leaf:Type A
Number of leaf:10 sheets
Range of the thickness of the leaf:0.03～0.30 (mm)
Combination order and thickness of the leaf:0.30, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.10, 0.15, 0.20 (mm)
Material of leaf:SK (carbon tool steel: gauge steel) quenching product（above Hv400）

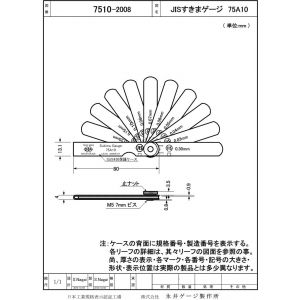

Exterior size:9.5 X 37 X 110（Gauge size refering to the drawings）
Weight:30g
<Features>
<Use for>
Interval measurement:You can inspect interval of two fine plane accurately and simply,which can not be measured by other measuring instruments.It is a measurement tool that can not be lacking in the interval measurement of the cylinder block and piston of automobile , electric motor and mover.
<Note>
・Confirm that you, please wiping off dirt , rust inhibitor the dust of the gauge surface completely using like deer skin.
・After cleaning the gauge surface as well after use, for not be rust , please keep it by applying the oils of low viscosity or "rust powder" or "sewing machine oil" .
・Please be careful sufficiently these rust inhibitor because it is dangerous to enter into your eyes or mouth.
