ANYEKE welding positioner design makes the best welding position ideally suited for those jobs requiring rotary fixturing and positioning.
ANYEKE welding positioner precision displacement rotary welding machine, to improve welding productivity and improve the quality of welding.
ANYEKE welding positioner is ideal for manipulating pipes, flanges, industrial iron roller, conveyor roller or other circular workpieces.
ANYEKE welding positioner axes of rotation and tilting movement of the workpiece without jitter optimum welding positioning.
Welding Positioner table configuration :
- Welding Chuck
- 3-jaw or 4-jaw chuck
- Customized jig
(customized according to the workpiece fixture)
Positioner welding accessories :
- Welding torch stand and holder assembly
- Customized welding torch movement.
(customized according to customer idea)
ANYEKE welding positioner precision displacement rotary welding machine, to improve welding productivity and improve the quality of welding.
ANYEKE welding positioner is ideal for manipulating pipes, flanges, industrial iron roller, conveyor roller or other circular workpieces.
ANYEKE welding positioner axes of rotation and tilting movement of the workpiece without jitter optimum welding positioning.
Welding Positioner table configuration :
- Welding Chuck
- 3-jaw or 4-jaw chuck
- Customized jig
(customized according to the workpiece fixture)
Positioner welding accessories :
- Welding torch stand and holder assembly
- Customized welding torch movement.
(customized according to customer idea)
Standard controller are provides :
- Rotation speed adjustment
- Forward or reverse
- Manual mode or automatic mode.
- Welding torch connectors and on/off switches
- Constant rotation mode
- Standard pedal switch allows hands-free operation.
- Rotation speed adjustment
- Forward or reverse
- Manual mode or automatic mode.
- Welding torch connectors and on/off switches
- Constant rotation mode
- Standard pedal switch allows hands-free operation.
Ground circuit allows to use of MMA, MIG, TIG, FCAW, GTAW or SAW welding, also can used for OXY cutting.

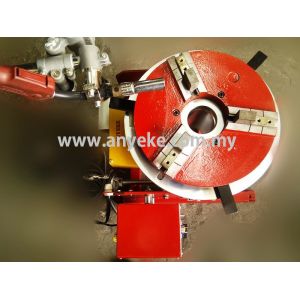

200KG WELDING POSITIONER manufactured by ANYEKE AUTOMATION ENGINEERING SDN.BHD.
SPECIFICATION
|
MODEL |
APL-200-CT |
|
INPUT POWER |
240 VAC |
|
ROTATION SPEED |
5 RPM |
|
MACHINE LENGTH |
600 MM |
|
MACHINE WIDTH |
530 MM |
|
MACHINE HEIGHT |
425 MM |
|
TURNING PLATE |
350 MM |
|
TURNING PLATE CENTER HOLE |
67mm |
|
TILTING RANGE |
0’ – 90’ DEGREE |
|
TILTING MODE |
MANUAL |
|
CAPACITY (VERTICAL 0' / HORIZONTAL 90') |
200KG / 100KG |
| WELDING CHUCK CLAMPING RANGE : MIN. / MAX. |
MODEL : D-300 MIN.30MM / MAX. 280MM |
| TORCH STAND ADJUSTABLE TORCH HOLDER BRACKET |
4 AXIS MIG , TIG & CUTTING TORCH |
*This Model (APL-200-CT) included the welding chuck and torch stand.
All ANYEKE standard products can be fully automated and customized for specialty applications.
