Applications | For factory equipment (such as filling machines, cooling devices and heat-generating equipment) | ||
---|---|---|---|
Fluids | Oils Chemicals (including gases, pure water) Foods (including fats) Powder Air Steam Water, Hot water | ||

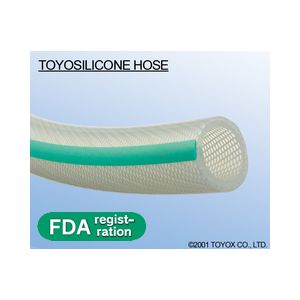

Material | Silicone rubber | Reinforcement material | Polyester threads |
Features |
|
||
Temperature range | -30°C-150°C |
Standards Chart by Size
Product no. | Inner dia. × Outer dia. | Use pressure | Range of temperature | Standard weight | Standard length | Minimum bend radius | Reinforced construction | Packaging | Color |
mm | MPa | °C | kg/Roll | m | mm | ||||
TSI-5 | 4.8×10.6 | 0 to 1.0 | -30 to 150 | 1.8 | 20 | 70 | Special weave | Box | With milky green lines |
TSI-6 | 6.3×12.3 | 0 to 1.0 | 2.3 | 20 | 80 | ||||
TSI-8 | 7.9×14.3 | 0 to 1.0 | 2.9 | 20 | 90 | ||||
TSI-9 | 9.5×16.0 | 0 to 1.0 | 3.2 | 20 | 100 | ||||
TSI-12 | 12.7×19.5 | 0 to 0.5 | 2.1 | 10 | 130 | ||||
TSI-15 | 15.9×24.0 | 0 to 0.5 | 3.1 | 10 | 150 | ||||
TSI-19 | 19.0×28.0 | 0 to 0.5 | 4.1 | 10 | 180 | ||||
TSI-25 | 25.4×35.5 | 0 to 0.5 | 5.9 | 10 | 220 | ||||
TSI-32 | 32.0×43.5 | 0 to 0.5 | 8.5 | 10 | 250 | ||||
TSI-38 | 38.1×50.5 | 0 to 0.5 | 10.5 | 10 | 310 | ||||
TSI-50 | 50.8×64.5 | 0 to 0.3 | 7.9 | 5 | 550 |
