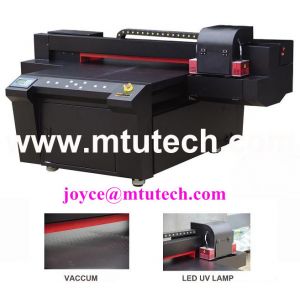

UV Printer (Epson Printhead)

Model No:MT-UV Series

Printheads:Epson DX5 heads

No of Printheads:Two

Colors:C C Y Y M M K K (White color and Varnish optional)

Resolution:360*720dpi, 720*1440dpi, 1440*1440dpi, 1440dpi*2880dpi

Print Speed:12sqms/8pass, 18sqms/6pass, 24sqms/4pass

Draft output:360*540dpi

Standard output:540*720dpi

High resolution output:720*1080dpi

Print width: 1000mm

Max Print Width:750mm (The length can be added according to customers’ requires.)

Max Print Thickness:(80mm Standard) (200mm custom made)

Transmission System:With imported high definition servo motor, Taiwan Hiwin guide rail etc,.

Adjusting system:With infrared ray induction system

Drying system:LED-UV light source

Software:PhotoPrint 6.1 or Maintop Rip

Color Controlling: Up to standard of International ICC, with curve and density adjustment functionImage Formats:Bitmaps, TIFF, JPEG, Postscript 3, EPS, PDF etc,.

Power Requires:208-230VAC, Single Phase, 50/60Hz, Max 30AOperation Environments Temperature:20 to 27Degree(68 to 80F),Humidity:40% to 65%Equipment Specifications:2400mm*1800mm*1150mm(L*W*H)

Weight:600KG

Warranty:One year warranty, lifelong Maintaince
