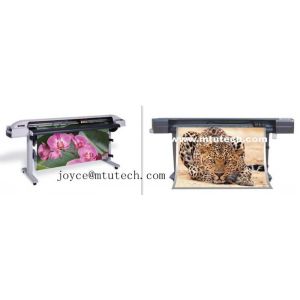

MT Novajet 5500 Parameter
|
|
Print Technology | Thermal inkjet with IMT™ technology |
Print Resolution | 300 x 300 dpi, 600 x 600 dpi, 1200 x 600 dpi |
Print Speed | Standard Print Speeds at 600 dpi |
High Speed 220 sfph (20.4 smph) | |
Productivity 150 sfph (14 smph) | |
Fine 115 sfph (10.7 smph) | |
Enhanced 75 sfph (7.0 smph) | |
Ultrafine 30 sfph (2.8 smph) | |
Ink Compatibility | Water base dye ink and pigment ink |
Media Handling | Standard automated media take-up and feeder system with media cutter |
Media Drying | Rapid Evaporation Drying System. Dual component system preheats media via internal conductive heated nose and air plenum carries moisture away for take-up at full speed. |
Interfaces | 100base-T Ethernet (TCP/IP) |
Software | Maintop Software |
Power Consumption | 25 watts idle, 1120 watts typical,Rated 10.5 A, 100 - 120 / 200 - 240 V, 50 - 60 Hz |
Environment | Operating 59° F to 85° F (15° C to 30° C ) |
20 to 70% RH non-condensing | |
Dimensions | 2.8m(length)×0.7m(width)×0.5m(height) |
Weight | 176kg |
Media Specifications | Roll Size Width 24" to 60" (61 cm to 152 cm) |
Max External Diameter 6" (15 cm) | |
Core Diameter 2" (5 cm) 3" (7.6 cm) with adapter | |
Maximum Weight 60 lbs (27 kg) | |
Printable Area | 58.8” (149.4 cm) Normal, 59.6” (151.4 cm) Expanded |
