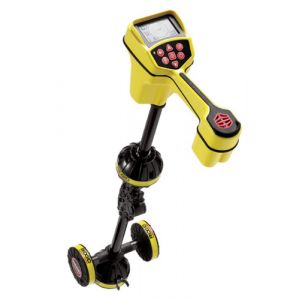

SeekTech SR-20

RIDGID's new line of locating equipment meets the most demanding needs of the locating professional. Built to make even difficult locates easy, SeekTech is the only line locator that uses omni-directional antennas, guidance arrows and an easy to read mapping display to lead you quickly and accurately to the target line.

The antennas power the large mapping display which provides all the information you need to locate underground utilities with ease and confidence.

Performance
The Mapping Display confirms a good locate signal and identifies distortion in congested areas using:

Target Line – Guides the operator down the line and shows changes in direction.
Left-Right Guidance Arrows – Point the operator to the target utility.
Proximity Signal and Signal Strength – Helps the operator center the locator closer to the target for more confident locates.

Other features include:

Continual Depth – Increases productivity by showing depth changes in real time.
Current Strength – Identifies current on target line for faster diagnosis of complex locates.

Features

	Proximity Signal Minimizes depth over target and maximizes relative signal strength to guide you closer to the target independent of the current flow
	Mapping Display Virtually maps the utility to help guide you down the line. Shows signal distortion and line turns in real time
	Continual Depth Increase productivity by showing depth changes in real time
	Guidance Arrows Guides the operator to target line by minimizing signal gradient
	Current Identifies current on target line for faster diagnosis of complex locates
	Signal Strength Allows the operator to maximize signal strength over the target

Specifications

	Active Line Trace Frequencies	128Hz, 1kHz, 8kHz, 33kHz
	Sonde Frequencies	16Hz, 512Hz, 33kHz
	Passive Power Trace	50Hz, 60Hz
	Passive Radio Trace	<4kHz, 4kHz-15kHz, 15kHz-38kHz
	Weight	3.9 lbs.
	Power Source	4 C-Size Batteries
