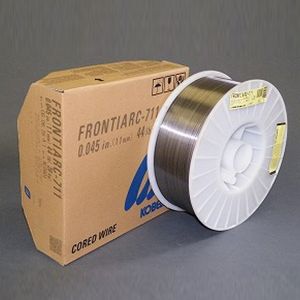

Flux cored wire for carbon steel


     Code Data:  AWS: A5.20 E71T-1C H8, 1M H8 / 12C H8,12M H8 / ASME: SFA 5.20
     Approved by CWB.ABS
      Code Data:  AWS: A5.20 E71T-1C H8, 1M H8 / 12C H8,12M H8 / ASME: SFA 5.20

     Approved by CWB.ABS
     Download a complete brochure

     Sizes: (.045 X  28, 44, 55, 550)  (.052 x 44, 550)  (1/16 X 44, 55, 550)

• All position flux cored wire for carbon steel

• All position welding for ship hulls, vehicles, bridges, chemical plant machinery and other metal fabrication.

• Can be used with either 100% CO2 or 75% Ar + 25% CO2 shielding gas

• Non-baked wire surface is covered with a special lubricant
  that creates smooth wire feedability and extended liner life

•


  Wire Size	Wire Feeding Speed (in/min)	Current (A) DC-EP	Voltage (V)	Deposition Rate (lbs/hr)	Wire Stick Out (in)
  .045	140	120	23-26	4.0	3/4
  	200	160	25-28	6.0	3/4
  	290	200	27-30	8.0	3/4
  	330	220	27-30	9.0	3/4
  	400	250	28-30	10.5	3/4
  .052	120	140	24-27	3.5	3/4
  	175	180	24-27	5.5	3/4
  	265	240	26-28	8.5	3/4
  	300	260	27-29	10.0	1
  	395	300	29-31	11.5	1
  1/16	100	180	24-27	4.5	3/4
  	165	240	25-28	7.0	3/4
  	190	260	26-29	8.0	1
  	250	300	29-31	10.0	1
  	300	340	30-32	11.5	1

* Voltage shown are for 100% CO2 gas. For 75%Ar+25%CO2 use 2 volts less   than shown here.

    Code Data:  AWS: A5.20 E71T-1C H8,1M H8/ 9C H8, 9M H8  /   ASME:SFA 5.20
     Approved by ABS, LR , DNV, CWB


• All position flux cored wire for carbon steel , Fast freeze slag formation helps welding at vertical up position.

• Fume generation lower than conventional flux-cored wire.

• Better versatility, user friendly

• Can be used with either 100% CO2 or 75% Ar + 25% CO2 shielding gas

• Non-baked wire surface is covered with a special lubricant that creates smooth wire feedability and extended liner life
