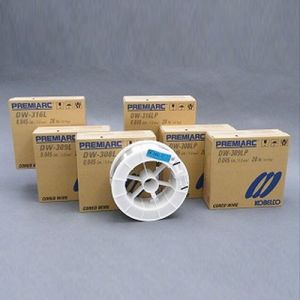

DW STAINLESS FLUX CORED WIRE |
Chemical composition and mechanical properties
Chemical Composition (%) |
Mechanical Properties |
|||||||||||
Name |
AWS A5.22 |
C |
Mn |
Si |
Cr |
Ni |
Mo |
WRC Diagram (FN) |
Tensile Strength (psi) (x1000) |
Elongation (%) |
Impact Value (ft-lbs) at 32 F |
Remarks |
DW-308 |
E308T0-1 |
0.04 |
1.44 |
0.52 |
19.70 |
9.60 |
- |
9.5 |
86 |
40 |
36 |
Flat or Horizontal |
DW-308H |
E308HT1-1 |
0.06 |
1.20 |
0.30 |
18.60 |
9.60 |
- |
3.1 |
82 |
45 |
50 |
High Temp Service |
DW-308L |
E308LT0-1 |
0.03 |
1.45 |
0.50 |
19.39 |
9.91 |
- |
9.2 |
79 |
42 |
38 |
Flat or Horizontal |
DW-308LP |
E308LT1-1 |
0.02 |
1.40 |
0.50 |
19.12 |
10.07 |
- |
9.2 |
78 |
42 |
40 |
All positional |
DW-309L |
E309LT0-1 |
0.03 |
1.23 |
0.51 |
23.95 |
12.66 |
- |
19.2 |
81 |
34 |
26 |
Flat or Horizontal |
DW-309LP |
E309LT1-1 |
0.02 |
1.20 |
0.42 |
23.24 |
12.59 |
- |
14.7 |
79 |
42 |
34 |
All positional |
DW-309LMo |
E309LMoT0-1 |
0.03 |
1.16 |
0.60 |
23.21 |
12.67 |
2.26 |
21.5 |
105 |
33 |
21 |
Overlay Flat or Horizontal |
DW-310 |
E310T0-1 |
0.19 |
4.76 |
0.60 |
27.37 |
20.55 |
- |
92 |
34 |
50 |
Full austenitic hot crack sensitive |
|
DW-312 |
E312T0-1 |
0.11 |
1.15 |
0.56 |
28.25 |
10.10 |
0.03 |
51.1 |
113 |
24 |
- |
High Ferrite content |
DW-316L |
E316LT0-1 |
0.03 |
1.35 |
0.49 |
18.94 |
12.02 |
2.21 |
7.1 |
81 |
37 |
32 |
Flat or Horizontal |
DW-316LP |
E316LT1-1 |
0.02 |
1.40 |
0.60 |
18.60 |
12.32 |
2.60 |
7.1 |
82 |
36 |
42 |
All positional |
DW-317L |
E317LT0-1 |
0.02 |
1.03 |
0.43 |
18.95 |
12.74 |
3.24 |
7.4 |
89 |
36 |
26 |
Flat or Horizontal |
DW-347 |
E347T0-1 |
0.05 |
1.64 |
0.40 |
19.16 |
9.68 |
[Nb] 0.50 |
8.5 |
82 |
37 |
58 |
Flat or Horizontal |
DW-2209 |
E2209T1-1 |
0.02 |
0.89 |
0.55 |
22.96 |
9.68 |
3.28 |
40.5 |
117 |
31 |
45 |
Duplex Stainless Steel All Positional |
