Pipe Cutting And Beveling Machines (Standard Saddle-Type)
Each machine is constructed of lightweight, hard-anodized aluminum, assuring durability and easy transportation to every job site. Anywhere you go you will be able to cut and bevel 2″ to 36″ pipe accurately, swiftly and economically, even under the toughest conditions.

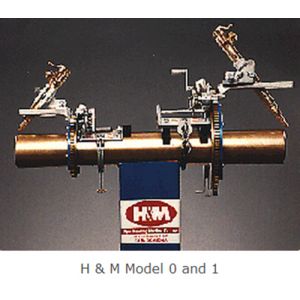

H & M Model 0 and 1
How accurately? Each ring gear and saddle is precisely machined, assembled and calibrated to ± .025 in concentricity and ± .015 in squareness. Each machine is equipped with a rear-mounted short saddle for cutting and beveling in tight locations. The rear-mounted saddle allows precise back-beveling operations without sacrificing the machine’s integrity.
How swiftly? Our machines’ unique “split horseshoe” design permits easy placement over pipe sections. A quick-operating boomer assembly secures each machine to the pipe during the entire 360-degree rotation; no repositioning is necessary. Our patented Cuboid Spacer System minimizes downtime by keeping the spacers on the machine. When using our No. 3 Standard Pipe Beveling Machine, for example, a 20″-diameter pipe can be completely cut and beveled in
How economically? Using H & M Pipe Beveling Machines saves weld prep time and money compared to hand cutting. Anyone can make accurate cuts and bevels with just a few minutes of instruction. Easy-to-follow manuals are provided with each machine.
H & M Standard Beveling Machines | |||||
---|---|---|---|---|---|
Model No. | Standard Pipe Sizes | Net Weight | Manual | Motorized | Cuboid Spacers (Pat.) |
No. 0 | 2″, 2.5″, 3″ and 4″ | 7.50 lbs. (3.37 kgs.) | Std. | Optional | Std. |
No. 1 | 3″, 4″, 6″ and 8″ | 16 lbs. (7.20 kgs.) | Std. | Optional | Std. |
No. 2 | 7″, 8″, 10″ and 12″ | 23 lbs. (10.35 kgs.) | Std. | Optional | Std. |
No. 3 | 14″, 16″, 18″ and 20″ | 51 lbs. (22.95 kgs.) | Std. | Optional | Std. |
No. 4 | 20″, 22″, 24″ and 26″ | 81 lbs. (36.45 kgs.) | Std. | Optional | Std. |
No. 30 | 24″, 26″, 28″ and 30″ | 92 lbs. (41.40 kgs.) | Std. | Optional | Std. |
No. 5 | 30″, 32″, 34″ and 36″ | 145 lbs. (65.25 kgs.) | Std. | Optional | Std. |
