AIR-LIFT CONVEYOR SYSTEMS
|

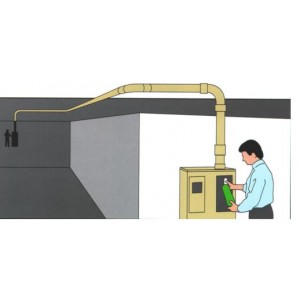

Basic Airlift Systems transfer items between two similar Send/Receive Stations through a single interconnecting tube. For installation where limited space or building obstructions won't permit standard 48-in. radius bends, 24-in. radius expanded bends are available that allow the free travel of Carriers without binding. Expanded bends can be used for upward, downward, or horizontal runs.
Two Configurations of Send/Receive stations are available for use in the pressure/pressure Airlift systems, depending on the user's station mounting requirements. The Type I Station suits narrow and taller mounting spaces, whereas the Type II Station fits wider and shorter mounting locations. Both Stations are fabricated from 16-gauge cold roller steel with an enamel finish. Station doors are manufactured from heavy steel.
|
PNEUMATIC DISPATCH SYSTEMS
|
Low-cost, automatic, instantaneous dispatch system designed to convey materials between two similar Send/Receive Stations through a single connecting tube Airlift Pneumatic Systems can deliver anything that fits in an Air-Lift Carrier to any remote location - even on different floors or in other buildings - in a few seconds. Small parts, orders, invoices, credit cards, shipping papers, memos, currency, mail, laboratory or test samples, medical supplies, or any other load weight up to 5 lbs, are whisked at speeds up to 25 feet per second on a jet-stream of low-pressure air to a destination up to 2,000 feet away. Flexible systems deliver upward, downward, or in any direction, not just horizontally. And they are energy-efficient; the blower operates
only when a Carrier is in transit, not 24 hours a day as many other system do. Unlike old-fashioned, bulky, twin-tube vacuum systems consisting of heavy steel tubing and low-capacity carriers plus expensive three-phase turbo-compressors requiring additional complex controls, the Air-Lift Pneumatic Systems are compact and high-capacity, providing two-way carrier travel in a single tube. Conveying tubing and bends are made from either strong, lightweight, non-corroding, dent-resistant PVC or optional steel, with diameters of 3 in., 4 in., or 6 in. And unitized Send/Receive Stations with built-in turbo blowers can sit on desks or tables, or mount easily in a minimum of space on walls, building columns, or any convenient flat surface, without using prime plant floor space. Installation is so easy, your own employees can set it up in less than a day! No complicated power wiring. Just plug system into an existing wall outlet. Air-Lift Carriers are made from durable, high-density polyethylene for excellent wear in system-compatible diameters of 3 in., 4 in., and 6 in., and standard lengths of 10 in., 12 in., and 14 in. Their smooth surfaces and aerodynamic design generate minimal friction, permitting dramatic increases in system capacity and length. Thousands of pneumatic tube system users are proving the cost efficiency of Air-Lift Pneumatic Systems in such diverse installations as:
or anyplace requiring an immediate flow of items at the lowest possible cost. Airlift Pneumatic Systems completely eliminate the need for messengers in most operations...eliminate their wages, benefit packages, coffee breaks, and time
taken from more productive work...and deliver the goods ten times as fast! If you're wasting money moving things in your business, then you should look into economical, fast, reliable, safe, and clean Air-Lift Pneumatic Systems. No other pneumatic tube system can deliver papers, parts, or samples from one location to another with the ease, speed, low cost, and safety of an Air-Lift system. |
