M100 Thermal Module
|

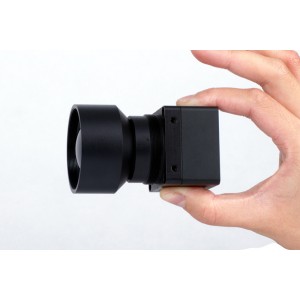

M 100 is a No shutting, high sensitivity, high reliability uncooled thermal imaging core. It has multiple configure and optional lens available, able to meet various applications. M100 integrates with low power consumption, instantaneous boot technology, compact design makes it well-suited for OEM assembly and integration. |
|
|
Detector Characteristics |
|
|
Detector |
Uncooled amorphous silicon FPA |
|
Array format/Pixel pitch |
384x288/25um |
|
Sensitivity |
≤80mk@ 300K,50HZ |
|
|
50Hz |
|
Spectral range |
8～14um |
|
Image Processing |
|
|
Nonuniformity calibration |
No shutting technology |
|
Instantaneous boot |
〈3s |
|
Noise reduction |
Digital filter |
|
Image pixel |
768X576 |
|
Image |
50Hz(PAL) / 60Hz(NTSC) |
|
Lens |
Optional |
|
Thermal Imaging Adjustment |
|
|
Polarity |
White hot /Black hot |
|
Image mirror |
Horizontal/Vertical |
|
Zoom |
X2，X4 |
|
Manual Gain |
Cycle adjustment |
|
Auto Gain |
Auto adjustment |
|
Power Supply |
|
|
Working voltage range |
DC: +2.2V～+5.5V |
|
Typical working voltage |
DC: +3.6V |
|
Power consumption |
〈0.6W |
|
Reverse polarity protection |
Yes |
|
Over voltage protection |
Yes |
|
Environmental |
|
|
Operating temperature range |
-20℃～60℃（Typical）；-40℃～60℃（Optional） |
|
Storage temperature range |
-50℃～65℃ |
|
Humidity |
5%～95% Non-condensing |
|
Shock and vibration |
100g;3Hz continuous（all direction） 1000g;10KHz Duration 10ms（All direction） 800g;10ms Plus（All direction） |
|
Anti temperature impact |
5℃/min(-40°C ~ +60°C) |
|
Physical |
|
|
Weight（No lens and back cover） |
30g |
|
Dimension（No lens and back cover） |
42x41x21mm |
|
Interface |
|
|
Power port |
Yes |
|
Serial port |
RS-232 |
|
Analog video output |
BNC(75Ω);Support dual RS170 CCIR/PAL Composite video |
|
Digital video output（Customized） |
16Bit(50Hz) |
|
Keyboard |
4 button keyboard |
