Diamond-Drill Units

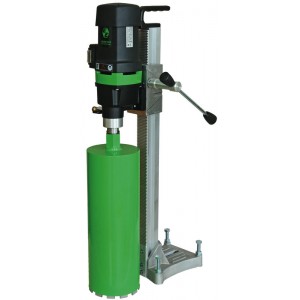

DB 160

The compact unit for installation holes up to 160 mm diameter
The DB 160 is a being directly fixed together unit of drill motor and rig. It is only equipped with the most important  features. This makes the drilling unit extraordinary, handy, robust and well-priced. For this reason, the DB 160 is especially suitable for craftsmen in the installation bussines who have to do wet-drillings (e.g. for house connections from time to time.)

• Space saving and compact drilling unit ⇒ low weight

• 1-speed oil bath gearbox ⇒ easy handling

• Mechanical safety clutch ⇒ protection of operator and tool in case of jamming

• On/off switch with overload cutt off-protection against overload of the motor

• For horizontal and vertical drillings

• PRCD-safety switch ⇒ FI-protection integrated in the cable

• Stainless steel combination spindle for ½ ” and1 ¼” drill bits

Specifications	DB 160
Power input Rated voltage Class of protection Drilling diameter Rated speed Spindle connection Weight drilling unit Order no.	2.500 W 230 V ~ I 160 mm 450 min-1 R ½” + 1 ¼” 15,5 kg 0B334

Diamond Drill Units

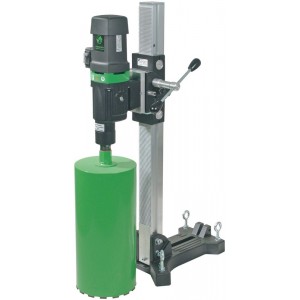

DBE 250 R

The powerful, robust unit for installation holes up to 250 mm in concrete

With the 2500 W motor and a solid 2 speed gearbox the DBE 250 R is a powerful unit up to 250 mm. For installation companies it is a optimal complement to a handheld diamond drilling machine

• Mechanical oil-bath gearbox with integrated oil pump ⇒ durable lubrication of the armature pinion
• Electronics- soft start, temperature control and over current cut off, optical overload indication, constant speed
• Quick- change plate ⇒ motor/rig
• Shaft seals replaceable from the outside
• Cut-off carbon brushes ⇒ to protect the motor

Specifications	DBE 250 R
Power input Rated voltage Class of protection Drilling diameter Rated speed No-load speed Spindle- connection Weight motor/drill unit Order no. motor Order no. drill unit	(EBM 250 RP + BST 250) 2500 W 230 V ~ I 52–250 mm 360/850 rpm 500/1100 rpm 1 1⁄4” male 10,5 kg/ 26 kg 0343H 0343F

Diamond Drill Unit

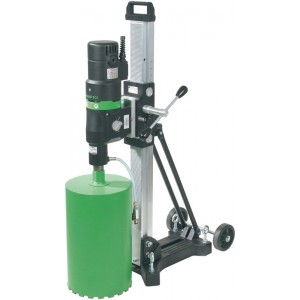

DBE 300

The robust unit for installation holes up to 300 mm in Beton
The robust drilling unit with all aluminium housing is particulary suited for the professional use in the entire construction sector e.g. natural stone , asphalt and reinforced concrete

• All aluminium housing - durable and resistant

• High performance 2.800 W motor- high power reserves

• 3-speed oil- bath gearbox- optimal speed adjustment in the entire drill range

• Integrated oil pump- optimal lubrication of all gear parts

• Mechanical safety clutch

• Electronics- soft start, temperature control and over current cut-off, optical overload indication

• PRCD-safety switch-FI-protection integrated in the cable

• Shaft seals replaceable from the outside-easy service

• Quick change plate- motor/rig

• Feed lever change without any tool (right/left)

• Cut-off carbon brushes-to protect the motor

Specifications	DBE 300 (with BST 300)
Power input Rated voltage Protection class Stroke Drilling diameter Rated speed Spindle connection Weight drill unit Order no. Motor complete with rig Supply	2800 W 230 V ~ I 610 mm 25–300 mm 270/700/1250 rpm 1 1⁄4” UNC male 32,1 kg   03533 0353B EBM 300/3 P + BST 300 Spanners SW 32, SW 41

Diamond Drill Rigs

DBE 350 R

The powerful unit for installation holes up to 350 mm
The strong drilling unit is suitable for a wide range of applications. Reinforced concrete, natural stone, asphalt etc. can be drilled fast and exactly in a range between 40 and 350 mm

• 3-speed oil-bath gearbox- optimal speed adjustment in the entire drill range
• Mechanical safety clutch
• Shaft seals replaceable from the outside- easy service
• Drill motor with additional handle – easy transport
• Electronics-soft start, temperature control and over current cut-off, optical overload indication, constant speed
• Cut-off carbon brushes- to protect the motor

Specifications	DBE 350 R (with BST 300)
Power input Rated voltage Class of protection Stroke Drilling diameter Rated speed Spindle connection Weight drill unit Order no. Motor Complete with rig-unit Supply	3000 W 230 V ~ I 610 mm 40–350 mm 230/500/1030 rpm 1 1⁄4” UNC male 30,9 kg   0363N 0363P EBM 350/3 RP + BST 300 Spanners SW 32, SW 41
