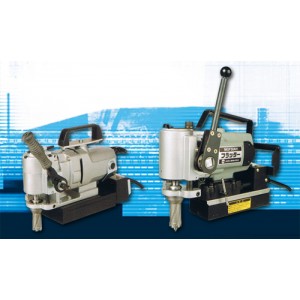

MGF-35 MGF-30AH
LED lamp helps operator
align the drilling position in
darkplaces |
Easy operation even in high
and/or vertical working
position |
Can be used in narrow
spaces |
Uses Crinkey Cutter patented
three-segment tip available
for SM and SN material |
Features
- Movable spindle system (for MFG30AH only)
Spindle moves in 4-ways, right/left-20mm, back/forth-10mm.
Fixing handle is removal. Use hexagon set screw to fix in case of operation in tight place.
- Removal Feeding Handle (all models)
The handle can be set at a desired angle as well as positioned on the right or left-hand side depending on working conditions
- Flat mounted motor and compact magnet
Makes drilling available at wider range of applications.
- Steel carrying case (all models)
preventing from unexpected damage.
- LED lamp (for MGF30AH only)
LED lamp helps drill positioning in dark places.
Adjustable Type (MGF30AH)
Specifications |
Model |
MGF30AH |
Max. cutting diameter |
30ømm |
Max. drilling depth |
35mm |
RPM |
600min-1 |
Power consumption |
660W |
Power supply |
Single-phase, 220V |
Net weight |
8.8kg |
Dimension (LxWxH) |
292X141X228mm |
Magnet dimension |
192X70mm |
Maximum magnetic power |
5500N (561kgf) |
Minimum plate thickness for magnetic hold |
6mm |
Movable spindle system |
Left/Right; 20mm, Back/Forth: 10mm |
LED lamp |
Ο |
Cutter (Option) |
35SQ Crinkey Cutter, 25SQ HSS Cutter, exclusive Noss Type Drill and CH HSS Cutter |
Standard accessories
(one each) |
Carrying case, for 30AH
Safety belt
Hex key : 5mm
Hex. Set screw
Instuction manual
Pilot pin/MGF-SP1 |
|
High Type (MGF35)
Specifications |
Model |
MGF30AH |
Max. cutting diameter |
35ømm |
Max. drilling depth |
35mm |
RPM |
700min-1 |
Power consumption |
670W |
Power supply |
Single-phase, 220V |
Net weight |
11.5kg |
Dimension (LxWxH) |
333X161X231mm |
Magnet dimension |
190X100mm |
Maximum magnetic power |
6860N (700kgf) |
Minimum plate thickness for magnetic hold |
6mm |
Movable spindle system |
- |
LED lamp |
- |
Cutter (Option) |
35SQ Crinkey Cutter, 25SQ HSS Cutter, exclusive Noss Type Drill and CH HSS Cutter |
Standard accessories
(one each) |
Carrying case, for 35
Safety belt
Hex key : 5mm
Cutting oil spray bottle
Instuction manual
Pilot pin/MGF-SP1
Pilot pin/MGF-SP3 |
|
