Fabrication Accessories for Hougen Mag Drills
 |
These kits let you drill pipe and tubing with a minimum 76mm diameter and some convex surfaces. Kits quickly attach to your Hougen Magnetic Drill and positive non-slip positioning assures centered hole location.
*Minimum 76mm dia. schedule 160,
maximum 304mm dia. schedule 160.
| PIPE ADAPTER KITS |
| Part Number |
Description |
| 02564 |
Chain Mount for use with HMD908 & HMD909 |
| 10726 |
Bracket Mount for use with HMD916 |
|
|

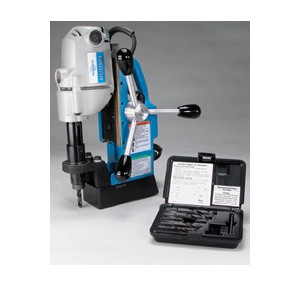

A convenient kit for small hole drilling. It contains all items listed below, and easily installs in a Hougen Magnetic Drill Adapter accepts a modified 118˚ twist drill with a 1/4" flatted shank.
| TWIST DRILL ADAPTER KIT |
| Part Number |
Description |
| 02608 |
Twist Drill Adapter |
| 03835 |
1/2" Twist Drill Bit |
| 03837 |
7/16" Twist Drill Bit |
| 03839 |
3/8" Twist Drill Bit |
| 03841 |
5/16" Twist Drill Bit |
| 03843 |
1/4" Twist Drill Bit |
| 03845 |
Twist Drill Adapter Kit |
|
|
| ROTALOC SPINDLE ADAPTER |
| Part Number |
Description |
| 17680 |
Rotaloc Adapter Assembly |
| 04778 |
Replacement Adapter |
| 04780 |
Replacement Pilot |
|
|
This coolant system offers an optional solution to the base drill unit system. The pressurized coolant system system for the HMD501 is used for drilling when gravity feed coolant is not applicable.
| ALTERNATIVE COOLANT SYSTEM |
| Part Number |
Description |
| 24140 |
2 gal. pressurized bottle assembly for use with HMD501 |
|
|
Two sizes of Jacobs Chucks are available for Hougen Mag Drills. The 12mm Chuck fits Model HMD908. The 15mm Chuck fits Models HMD909.
| Jacobs CHUCKS |
| Part Number |
Description |
| 10732 |
12mm Chuck with Key |
| 10738 |
15mm Chuck with Key |
|
|
When extended reach is necessary, Hougen offers 1" and 2" diameter that fit arbors using Rotabroach 12,000-Series" Cutters.
| ARBOR EXTENDERS |
| Part Number |
Description |
| 10100 |
1" Arbor Extender Assembly |
| 10200 |
2" Arbor Extender Assembly |
|
|
82˚ Countersink is triple fluted with a patented pilot assembly that requires minimum torque with maximum efficiency for holes from 9/16" to 15/16" diameters.
| COUNTERSINK KIT |
| Part Number |
Description |
| 12958 |
Kit includes (1) Cutter and (4) Pilots |
| 12959 |
82˚ Countersink Cutter |
| 12952 |
9/16" diameter Pilot |
| 12953 |
11/16" diameter Pilot |
| 12954 |
13/16" diameter Pilot |
| 12955 |
15/16" diameter Pilot |
|
|
With feed handles removed the Ratchet Drive allows use of a standard ratchet handle for drilling in confined areas. (Rachet not included)
| RACHET DRIVES |
| Part Number |
Description |
| 02449 |
For use in Model HMD908 |
| 24154 |
For use in Model HMD501 |
|
|
Spindle Adapters are required for several of the accessories listed in this catalog to increase versatility & productivity of your Hougen Magnetic Drill.
| SPINDLE ADAPTERS |
| Part Number |
Description |
| 01829 |
HMD908 Chuck/Tap Adapter |
| 02386 |
HMD916 3/4" Shank Adapter |
| 40040 |
HMD916 3/4" Weldon Adapter |
| 40226 |
HMD909 Chuck/Tap Adapter |
| 40341 |
HMD909 Chuck Adapt. (long) |
|
