Rotaloc

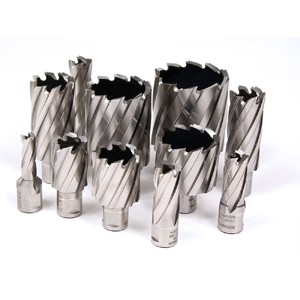

Rotaloc Annular Cutters are designed for use with the Hougen HMD111 Ultra-Low Profile Truck Frame Drill, and Rotaloc Plus Annular Cutters are designed for the Hougen HMD151. They feature an easy shank mounting for fast change out, with no tools required to install in the drill's arbor. For optimum cutter tool life and cutter efficiency use Hougen Slick-Stik Lubricant.
ROTALOC ANNULAR CUTTERS
M42 HSS - 19MM D.O.C. - STACK CUT
Cutter  Dia.
(Inches)		 Decimal
Equiv.		 Part
Number
Use with Pilot 17100 or 17101
1/2 .5000 17116
9/16 .5625 17118
5/8 .6250 17120
11/16 .6875 17122
3/4 .7500 17124
13/16 .8125 17126
7/8 .8750 17128
15/16 .9375 17130
1 1.0000 17132
1-1/16 1.0625 17134
Cutter  Dia.
(Metric)		 Decimal
Equiv.		 Part
Number
Use with Pilot 17100 or 17101
12mm .4724 17300
13mm .5118 17302
14mm .5512 17304
15mm .5906 17306
16mm .6299 17308
17mm .6693 17310
18mm .7087 17312
19mm .7480 17314
20mm .7874 17316
21mm .8268 17318
22mm .8661 17320
23mm .9055 17322
24mm .9449 17324
24.5mm .9645 17325
25mm .9843 17326
26mm 1.0236 17328
27mm 1.0630 17330
ROTALOC PLUS ANNULAR CUTTERS
M2 HSS - 25MM D.O.C.
Cutter  Dia.
(Inches)		 Decimal
Equiv.		 Part
Number
Use with Pilot 17470
1/2 .5000 17216
9/16 .5625 17218
5/8 .6250 17220
11/16 .6875 17222
3/4 .7500 17224
13/16 .8125 17226
7/8 .8750 17228
15/16 .9375 17230
1 1.0000 17232
1-1/16 1.0625 17234
1-1/8 1.1250 17236
1-3/16 1.1875 17238
1-1/4 1.2500 17240
1-5/16 1.3125 17242
1-3/8 1.3750 17244
Cutter  Dia.
(Metric)		 Decimal
Equiv.		 Part
Number
Use with Pilot 17470
12mm .4724 17400
13mm .5118 17402
14mm .5512 17404
15mm .5906 17406
16mm .6299 17408
17mm .6693 17410
18mm .7087 17412
19mm .7480 17414
20mm .7874 17416
21mm .8268 17418
22mm .8661 17420
23mm .9055 17422
24mm .9449 17424
24.5mm .9645 17425
25mm .9843 17426
26mm 1.0236 17428
27mm 1.0630 17430
28mm 1.1024 17432
29mm 1.1417 17434
30mm 1.1811 17436
31mm 1.2205 17438
32mm 1.2598 17440
33mm 1.2992 17442
34mm 1.3386 17444
35mm 1.3779 17446
ROTALOC ANNULAR CUTTER KIT
Part Number Description

17001

 Kit contains (10) Rotaloc cutters in a sturdy plastic case plus two Pilots. Sizes include: 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1", 1-1/16"

Rotaloc Cutters fit Hougen Mag Drill models HMD111, HMD115, HMD151, and HMD150.
ROTALOC & ROTALOC PLUS PILOTS
Part Number Description
17100 Standard Pilot for HMD111
17101 Spring Ejection Pilot for HMD111
17470 For use with HMD151
