Nibbler

单价	面议对比
询价	暂无
浏览	144
发货	MalaysiaKuala Lumpur
品牌	Makita / Bosch
型号	JN1601 / JN3200 / GNA2
过期	长期有效
更新	2012-08-11 13:14

联系方式

加关注0

WILDA MACHINERY TRADING SDN BHD

Company第8年

资料未认证

保证金未缴纳

Malaysia-Kuala Lumpur
上次登录 2012-09-28 •
wilda (Mr.)

进入主页更多Products

详细说明

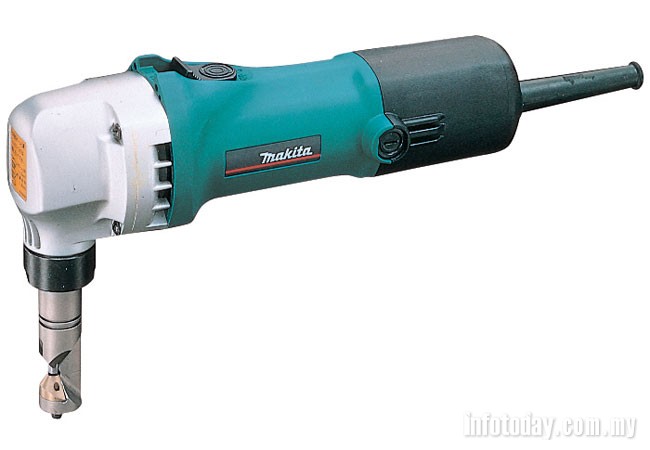

Model: Makita JN1601

Precise, burr-free curved and straight cuts from slim, yet powerful performer.
Cuts flat and corrugated sheet metal with the same die.
Die rotates 360degrees, large 1/4" stroke.
Built-in thickness gauge for convenience.

Continuous rating Input
Capacity

Min. cutting radius

Strokes per minute (spm)
Overall length
Net weight

550W
Steel up to 400 N/mm2 : 1.6mm
Steel up to 600 N/mm2 : 1.2mm
Steel up to 800 N/mm2 : 0.8mm
Aluminum up to 200 N/mm2 : 2.5mm
Outside edge : 50mm (2")
Inside edge : 45mm (1-3/4")
2,200
261mm (10-1/4")
1.6kg (3.6lbs)

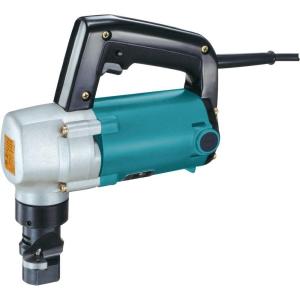

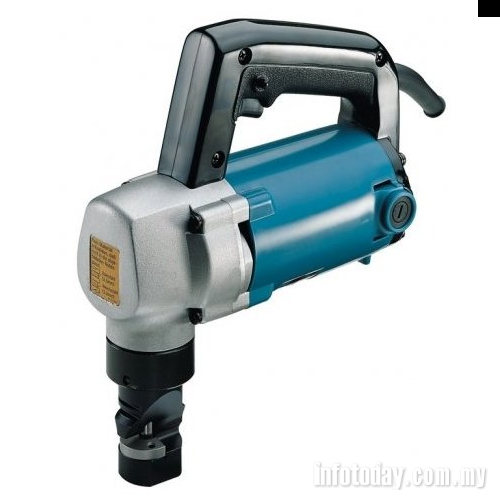

Model: Makita JN3200

Zips through sheet metal, plastics and other sheet materials.
Built-in thickness gauge for convenience.
Easy punch and die replacement for reduced down time.

Continuous rating Input
Capacity

Min. cutting radius

Strokes per minute (spm)
Overall length
Net weight

660W
Steel up to 400 N/mm2 : 3.2mm
Steel up to 600 N/mm2 : 2.5mm
Steel up to 800 N/mm2 : 1.0mm
Aluminum up to 200 N/mm2 : 3.5mm
Outside edge : 128mm (5-1/16")
Inside edge : 120mm (4-3/4")
1,300
215mm (8-1/2")
3.4kg (7.5lbs)
