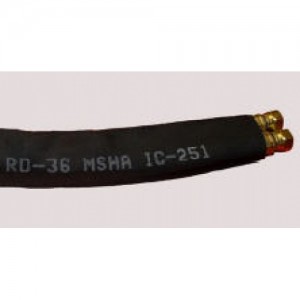

Easy-to-install, textile MSHA-approved SAFE-SLEEVE is produced from polyester which is recyclable material.

In addition to hoses, SAFE-SLEEVE MSHA protects people near-by a breaking hose and meets the requirements of standards EN 12999 and EN ISO 3457.

Watch these videos where the hose is damaged and the fluid bursts out (Pin Hole):

Video 1: hose without any protective sleeve
Video 2: hose protected with Safe-Sleeve

The recommended temperature range is -40…- +120°C. SAFE-SLEEVE MSHA is UV-protected and has a very low conductivity of electricity. Abrasion resistance of SAFE-SLEEVE MSHA is also good.

Test reports are available on request.

As a guideline we suggest that the Safe-Sleeve is a few millimetres larger than the hose. Please see our recommendations.

Colour
Colour black with white printing.
Own printing possible - ask for details.

Length
50m / roll.

Aluminium rings for attaching the Safe-Sleeve on the hose also available.



SAFE-SLEEVE MSHA
Product code
Inner diameter (mm) (tolerance +/- 0.5mm)
MSHA-RD17M 17
MSHA-RD27M 27
MSHA-RD30M 30
MSHA-RD36M 36
MSHA-RD39M 39
MSHA-RD46M 46
MSHA-RD55M 55
MSHA-RD62M 62
MSHA-RD78M 78
MSHA-RD109M 109
MSHA-RD125M 125
