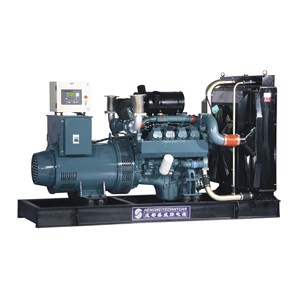

500KVA Doosan Diesel Generator Set

1. Doosan Diesel engine + Stamford alternator (Other alternators are available)
2. 24V DC start motor and storage battery
3. Alternator: brushless, Self-excited, IP23, insulation class H
4. Cooling method: Water-cooled system
5. Base tank: with capacity for 8 hours operation

6. Protection function: overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop.



Note:

1. Silent type and mobile trailer type generators are available.

2. All generators passed rigorous testing before delivery. Four testing phases: 50% load, 75% load, 100% load, 110% load.



Available special generator systems

Containerised power station, truck generator, trailer generator, parallel system, remote controlling system, ATS, low noise projects



Product Specification

Standby Power		Prime Power		Engine model	Consumption (Full load)
KW	KVA	KW	KVA		g/kwh	l/hr
450	563	407	509	P180LE-S	206	108.9



Doosan Engine
Cylinder	Bore (mm)	Stroke (mm)	Volume (litre)
10V	128	142	18.3



Lube Volume (litre)	Cooling water volume (litre)	Dimension L*W*H (mm)	Net Weight (kg)
38	94	3550*1390*2000	3200
