* input voltage (V): AC220±15%
* frequency (HZ): 50/60
* rated input current: 28A
* No-load Voltage: 41V
* output current range: 10-200A
* rated out voltage: 18V
* duty cycle: 60%
* No-load Loss: 40W
* Arcing Way: HF
* Power factor: 0.73
* Efficiency: 80%
* Insulation grade: F
* Housing protection grade: IP21
* Net weight: 9kg
* Dimension: 375 x 155 x 232mm

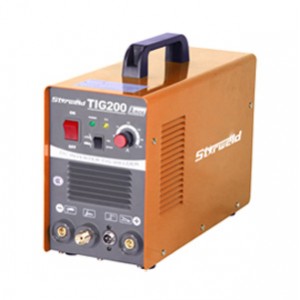

TIG200A
* input voltage (V): AC220±15%
* frequency (HZ): 50/60
* rated input current: 43/28A
* No-load Voltage: 56V
* output current range: 10-200A
* rated out voltage: 28/18V
* duty cycle: 60%
* No-load Loss: 40W
* Arcing Way: Transfer
* Power factor: 0.73
* Efficiency: 80%
* Insulation grade: F
* Housing protection grade: IP21
* Net weight: 9kg
* Dimension: 375 x 155 x 232mm

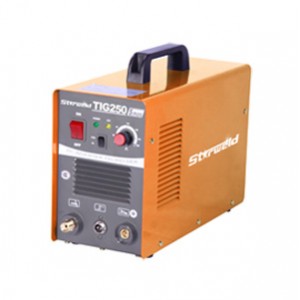

TIG250S
* input voltage (V): AC220±15%
* frequency (HZ): 50/60
* rated input current: 40A
* No-load Voltage: 46V
* output current range: 10-250A
* rated out voltage: 20V
* duty cycle: 60%
* No-load Loss: 60W
* Arcing Way: HF
* Power factor: 0.73
* Efficiency: 80%
* Insulation grade: F
* Housing protection grade: IP21
* Net weight: 9kg
* Dimension: 375 x 155 x 232mm

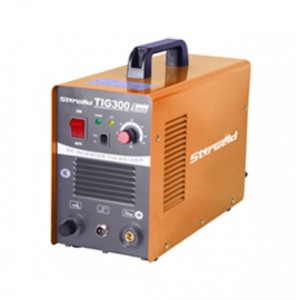

TIG300S
* input voltage (V): AC415±15%
* frequency (HZ): 50/60
* rated input current: 12.7A
* No-load Voltage: 54V
* output current range: 10-300A
* rated out voltage: 22V
* duty cycle: 60%
* No-load Loss: 60W
* Arcing Way: HF
* Power factor: 0.93
* Efficiency: 85%
* Insulation grade: F
* Housing protection grade: IP21
* Net weight: 9kg
* Dimension: 480 x 204 x 303mm
- Applying the inverter technology to reach high working frequency, small dimension & weight, very convenient for taking around.
- With the design of HF & pulse hot-start to realize outstanding arc-start. The welding current is powerful enough & the cost performance ratio is high.
- Having the function of auto-protection against over-voltage & over-current.
- With special design for output features. More suitable for wire-feeding welding to make welding seam beautiful.
- Designed for wide range of input voltage. The high duty-cycle makes the machine very suitable for continuous operation in the factories.
- Simple in design. wonderful in structure, easy in maintenance, reliable and endurable.
- Suitable for the welding of stainless steel, carbon steel, copper & etc.
