* input voltage (V): AC220±15%
* frequency (HZ): 50/60
* rated input current: 32.7A
* No-load Voltage: 59V
* output current range: 30-160A
* rated out voltage: 26.4V
* duty cycle: 60%
* No-load Loss: 40W
* Power factor: 0.73
* Efficiency: 80%
* Insulation grade: F
* Housing protection grade: IP21
* Net weight: 5.5kg
* Dimension: 290 x 132 x 203mm

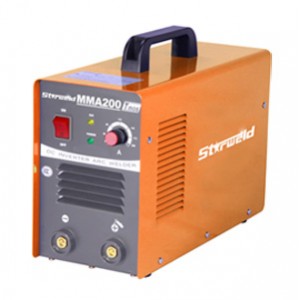

MMA200T
* input voltage (V): AC220±15%
* frequency (HZ): 50/60
* rated input current: 43.6A
* No-load Voltage: 59V
* output current range: 30-200A
* rated out voltage: 28V
* duty cycle: 60%
* No-load Loss: 40W
* Power factor: 0.73
* Efficiency: 80%
* Insulation grade: F
* Housing protection grade: IP21
* Net weight: 8kg
* Dimension: 375 x 155 x 232mm

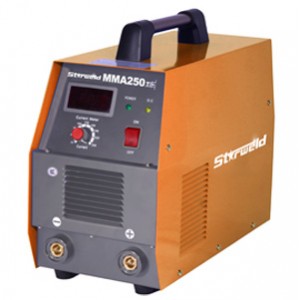

MMA250T
* input voltage (V): AC220±15%
* frequency (HZ): 50/60
* rated input current: 58.3A
* No-load Voltage: 59V
* output current range: 30-250A
* rated out voltage: 30V
* duty cycle: 60%
* No-load Loss: 60W
* Power factor: 0.73
* Efficiency: 80%
* Insulation grade: F
* Housing protection grade: IP21
* Net weight: 15kg
* Dimension: 432 x 204 x 302mm
- With the function of auto-compensation against power flutuation. And the output welding current will be stable.
- Having the function of auto-protection against over-voltage and over-current.
- Having powerful arc-force
- Reliable quality with small dimension & weight as well as high efficiency.
- Able to weld basic and acid electrodes.
- Applicable to low carbon steel, medium carton steel and alloy steel.
- The most advanced airductdesign, improve product reliability and reduce cost.
