* input voltage (V): AC220V±15%
* frequency (HZ): 50/60
* rated input current: 37.4A
* output current range: 50-220A
* rated out voltage: 16.5-24V
* duty cycle: 60%
* Power factor: 0.73
* Efficiency: 80%
* Type of Wire Feeder: Built-in
* Wire-feeding Speed (m/min): 2.5-18
* Insulation grade: F
* Housing protection grade: IP21
* Plate thickness (mm): 0.8+
* Net weight: 35kg
* Dimension: 655 x 300 x 665mm

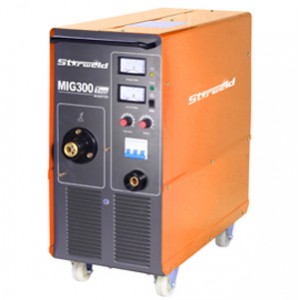

MIG300Y
* input voltage (V): AC415V±15%
* frequency (HZ): 50/60
* rated input current: 16.7A
* output current range: 50-300A
* rated out voltage: 16.5-29V
* duty cycle: 60%
* Power factor: 0.93
* Efficiency: 85%
* Type of Wire Feeder: Built-in
* Wire-feeding Speed (m/min): 2.5-24
* Insulation grade: F
* Housing protection grade: IP21
* Plate thickness (mm): 0.8+
* Net weight: 35kg
* Dimension: 655 x 300 x 665mm
- Small & light: with the mid-frequency transformer which is extremely smaller than the traditional welding power sources:- weighting one fifth to one tenth as much as traditional welding power sources; only one third as big as the traditional welding power sources.
- Efficient & energy-saving: because inverter welders reduce the wasted power by using less copper & steel. Over one third power consumption will be saved because the efficiency is 80% to 85% while the power factor is as high as 0.93.
- Having step-less adjustment for welding current & voltage. Different requirement of different welding technique will be reached.
- Stable welding with small spatter & outstanding welding performance.
- With the function of auto-compensation against power fluctuation.
- Design integrated; welding anywhere at any time; easy to operate.
