* input voltage (V): AC220±15%
* frequency (HZ): 50/60
* rated input current: 30A
* No-load Voltage: 230V
* output current range: 20-40A
* rated out voltage: 96V
* duty cycle: 60%
* No-load loss: 40W
* Efficiency: 80%
* Power factor: 0.73
* Insulation grade: F
* Housing protection grade: IP21
* Arcing Way: Contact
* Recommended Air Pressure: 4-5
* Cutting thickness: 1-16mm
* Net weight: 9kg
* Dimension: 371 x 153 x 232mm

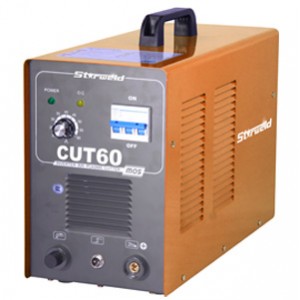

CUT60
* input voltage (V): AC220±15%
* frequency (HZ): 50/60
* rated input current: 12A
* No-load Voltage: 295V
* output current range: 20-60A
* rated out voltage: 104V
* duty cycle: 60%
* No-load loss: 60W
* Efficiency: 85%
* Power factor: 0.93
* Insulation grade: F
* Housing protection grade: IP21
* Arcing Way: Contact
* Recommended Air Pressure: 4-5
* Cutting thickness: 1-25mm
* Net weight: 19kg
* Dimension: 480 x 204 x 303mm

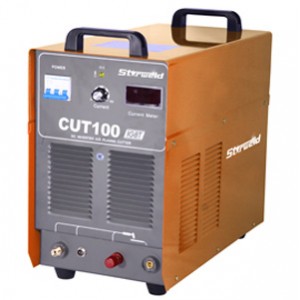

CUT100
* input voltage (V): AC415±15%
* frequency (HZ): 50/60
* rated input current: 23.1A
* No-load Voltage: 268V
* output current range: 20-100A
* rated out voltage: 120V
* duty cycle: 60%
* No-load loss: 80W
* Efficiency: 85%
* Power factor: 0.93
* Insulation grade: F
* Housing protection grade: IP21
* Arcing Way: Transfer
* Recommended Air Pressure: 4.5-5.5
* Cutting thickness: 1-40mm
* Net weight: 39kg
* Dimension: 560 x 370 x 350mm
- Able to cut metal plates in various routes.
- Outstanding cutting performance. Especially suitable for cutting carbon steel, stainless stell, aluminium and copper.
- Widely used in iron structure construction, manufacture and automobile maintenance.
- Improved cooling method for the cutting torch; greatly makes the cutting consumables more endurable.
- Using air pressure adjusting equipment. Able to operate when the external air pressure is too high.
- The cutting current is continuously adjustable. Direct and precise.
- With protection of electro circuit against over current, over voltage and low-voltage. Safety in operation is assured.
