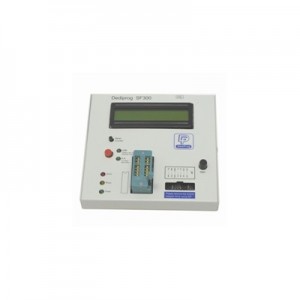

SF300 comes with all the capability provided by SF100 and SF200. In addition, it further allowsstandalone programming without the need of a PC. Contents and programming procedures are prepared in the SF300 through the software. LCD display, LED, start button, buzzer, reset counter button are equipped to ensure good user friendliness during the standalone programming.
Features :
- USB Interface - load a file, blank check, program and verify the target Serial Flash
- Window DOS Interface-User can quickly perform some repetitive operations just by typing the command on our Window DOS interface.
- Standalone Mode -update the serial flash without computer
- Support Windows 2003 and above
- Support both 32 bit or 64 bit OS
High performance(tested and measured with software version 2.0.37.2 and from a single source of serial flash memory supplier):
SF300 is designed with ISP header, through an appropriate connector, users can connect the programmer and drive the SPI signals, supply the memory and control the controller or application status.Please refer to Table 1 for the SF300 2x7 header pin out.
DediProg also provides the ISP Cable which is used to connect the SF300 programmer to the 2X4 2.54mm ISP Pin Header on board, please refer to Table 2 for the ISP Cable 2x4 pin out.
- 1x USB cable
- 1x SF300 Programmer
- 1x ISP cable
- 1x 9V power adaptor
- CDROM with Software, specifications and user manual
Option Purchase :
- ISP SO8 Testclip
- ISP SO16W Testclip
- SO8W to DIP Adaptor
- SO8N to DIP Adaptor
- MLP/MLF 5x6 to DIP Adaptor
- MLP/MLF 6x8 to DIP Adaptor
- TSSOP8 to DIP Adaptor
