The voltage at which oil breaks down is a valuable indication of the health of the oil. The tests that can be performed are well standardized internationally and our equipment is designed to automate the di erent variations of the tests required.

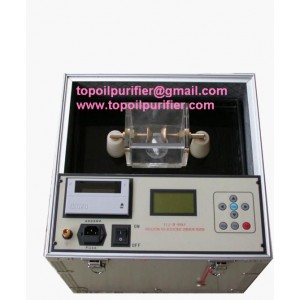

The IIJ range of oil testers from TOP are renowned for their small size and low weight and are packed full of features to allow easy testing of the oil samples. The range is available in various maximum voltages to best suit the requirements and budget of our customers.
Features
*Compact and light
*LCD display
*Automatic test sequences meeting all relevant standards
*Nondestructive testing of synthetic oil, ester oil and silicone oil
*Direct measurement of high voltage output
*Monitored rise times
*Easy to use with PC Software supplied
*Customer specific test sequences programmable
*Automatic magnetic stirrer
*Automatically generated test reports
*Extended operating temperature
*USB drive interface & Bluetooth(TM) connection
*fast switch-off
TECHNICAL DATA
Output Voltage :up to 100Kv (80Kv, 100Kv)
Capacity: 1.6 KVA, 2.0 KVA
Pressure increase rate about 2kVA/s
Pressure testing speed: 3%
Breakdown sensitivity: < 2KV
Wave from distortion: <3%
Time of breakdown : <10 ms
Polar distance: 2.5 mm
