Product type |
Type |

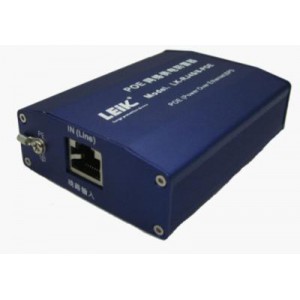

LK-RJ45/8-POE |
|||
|
signal(10/700μs) |
power(8/20μs) |
||||
|
Rated working voltage |
Un |
5V |
48V |
||
|
Max continuous voltage |
Uc |
5.8V |
72V |
||
|
Discharge current/wire |
wire/wire |
In |
6KV 150A |
3KA |
|
|
wire/ground |
6KV 150A |
3KA |
|||
|
Max discharge current (8/20μs) |
Imax |
/ 5KA |
|||
|
Response time |
|
<25n sec. |
|||
|
Voltage level(@In) |
wire/wire |
|
≤30V |
≤150V |
|
|
wire/ground |
|
≤500V |
≤600V |
||
|
Transfer rate（3dB） |
fg |
> 100MHz |
-- |
||
|
interface |
|
RJ45 interface |
|||
|
Protection line |
|
1,2,3,6 |
4,5（＋） 7,8（－） |
||
|
Shell material |
|
Aluminum alloy |
|||
|
Insert loss |
lL |
≤0.5dB |
/ |
||
|
Operating temperature |
|
-25℃~65℃ |
|||
|
Series resistance |
R |
4.7Ω |
/ |
||
signal SPD is combined with Intelligent Line Adapter (ILA). When the SPD is used in the POE system, it can automatically discriminate the idle line power supply from the data line power supply, so that it suitable for any kinds of POE power supplies system
