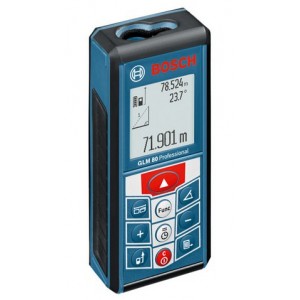

GLM 80
The high-tech solution for convenient measurement
- New functionality due to integrated 360° incline sensor
- Precise and easy to operate due to illuminated display which turns automatically
- Up to 25,000 individual measurements per battery charge due to Li-Ion technology
- Automatic storage of the last 20 measured values and one constant
- Can be recharged via standard micro USB port
- Timer function can be switched on/off – for precise measurement from difficult positions
- Small and handy
- Reliable aid on any construction site due to robust design
DLE 70
- User-friendly operation thanks to self-explanatory buttons and a concise display
- Ideal tool for every construction site because it is dust and splash-protected (IP 54) and it is equipped with softgrip
- Sturdy metal measurement pin for measuring from corners and hard-to-reach areas
- Other functions such as continuous measurement, indirect length measurement, addition and subtraction function for considerable time-saving
- 1/4" tripod thread for convenient use with Building Tripod BS 150 Professional
Technical data
| Laser diode | 635 nm, < 1 mW |
| Measurement range | 0,05 - 70 m |
| Laser class | 2 |
| Measurement accuracy, typical | ± 1.5 mm |
| Measurement time, typical | < 0.5 s |
| Measurement time, max. | 4 s |
| Power supply | 4 x 1.5 V LR03 (AAA) |
| Automatic deactivation | 5 mins |
| Weight, approx. | 0,18 kg |
| Length | 100 mm |
| Height | 32 mm |
| Units of measurement | m |
GLM 150
Technical Data
| Measuring Range | 0.05 - 150m |
| Measuring Acccuracy | ±1.0mm |
|
Battery lifetime, approx, Individual measurements Continuous measurement |
30,000 5 hrs
|
| Power supply | 4 x 1.5 V (AAA) |
| Dust and splash protection | IP54 |
| Weight, approx. | 0.24 kg |
| Length | 120 mm |
| Width | 66 mm |
| Height | 37 mm |
| Units of measurement | m/cm |
