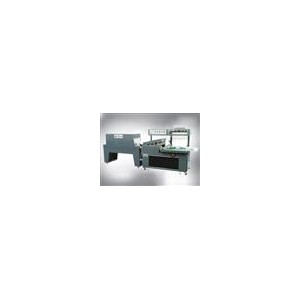

Automatic Sealing-Shrink Wrapper
Filling Machine Product De
fendou86gzj
Our company products include;
Do you know which packaging machine is the best in China? Dongtai machinery is a professional packaging machinery manufacturer. Provide the user the best solution, through long-term customer service has set up a perfect sales service system.
Applicability; Single and group products of medicine, food, drinking, stationery, printings, cosmetic, electronic porducts, toys, auto parts, etc
Specifications
BS-400LB
- Sealing type; L-sealing by means of L-bar
- Power supply; 380V/50-60Hz/3phase
- Packing capacity; 35 packs per minute (depends on product size and
film width)
- L-bar size; 570x480 mm
- Max height of sealing
- Film type; center-folded film with 12-80 micron
- Max film size; width; 520mm (folded), outer diameter; 400mm
- Conveyor speed; 19 m/min
- Working height; 780-850 mm
- Rated power consumption; 1.25 kW
- Air pressure; <=0.5MPa (5 bar)
- PLC; SIEMENS CPU
- Sealing system; permanently heated seal bar with easy-exchangeable
sealing blade with Teflon, temperature controlled and detected by PLC
- Operating interface; Touchscreen Eview MV506, display operation
guidance and error diagnostic
- Machine material; stainless steel
- Machine dimension; 1600x770x1450mm
BMD-450B
- Power supply; 380V/50-60Hz/3phase
- Oven size; 1200(length) x 450(width) x 220(height) mm
- Conveyor speed; variable, 40 m/min
- Conveyor; chains with rotating silicon coated rods
- Temperature control; By electronic thermostat
- Rated power consumption; max 7 kW
- Working height; 780-850 mm
- Machine material; stainless steel
- Machine dimension; 1600x600x1260mm
