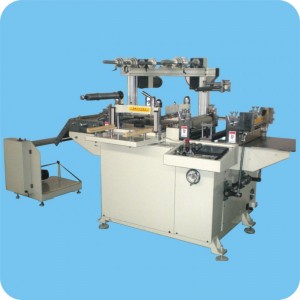

Automatic die cutting machine
Functional characteristics:
320B die cutting machine is developed on the basis of
The machine body is cast on the whole, and the mahcine enjoys powerfull pressure, stable operation, firm and durable.
It contains an oil gear box which reduces abrasion to the mahcine during the operation,
thus prolonging the life span of the machine, enhacing the utilization ratio of the machine.
"Press itinerary and pull the material length are automatically adjusted by the screen, make moulding-adjustment more convenient
"
Scope applicable:
The product is developed aiming at the die cutting and forming of various insulating materials such as PVC, film, Mylar,
copper foil, aluminum foil, foam, etc. in the electronic industry.
| Model | DP-320B | DP-420B |
| Max Feeding Width ( mm ) | 320 | 420 |
| Cutting Area ( mm ) | 320*300 | 450*400 |
| Cutting Speed ( T/M) | 30-170 | 30-170 |
| Position Accuracy ( mm ) | ±0.1 | ±0.1 |
| Power of Main Engine ( kw ) | 2.2 | 3 |
| Size ( mm ) | 2300*1250*1500 | 2400*1290*1610 |
| Voltage (V ) | 220 | 380 |
