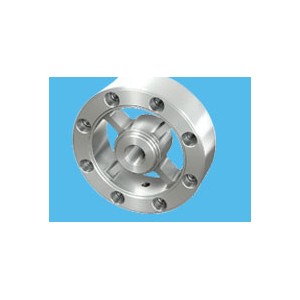

Smaller dimensions:
Outside Diameter:19mm Inside Diameter:10.2mm Height:6mm Capacity:750kg,1000kg
Outside Diameter:32mm Inside Diameter:20.2mm Height:6mm Capacity:2000kg,3000kg
Parameter Unit Value (Data)
Range Kg 20,30,50,100,200,300,500,1000,2000
Range Kg 20,30,50,100,200,300,500,1000,2000
Output Sensitivity mV / V 1.0 ± 10%
Comprehensive error % F.S 0.2
Temp.effect On Zero % F.S/10°c 0.1
Temp.effect On Outp % F.S/10°c 0.1
Temp.effect On Zero % F.S/10°c 0.1
Temp.effect On Outp % F.S/10°c 0.1
Zero Output mV / V ± 0.04
Input Resistance Ω 410±30
Output Resistance Ω 350±3
Overload Capacity % F.S 150
Overload Capacity % F.S 150
Recommended excitation voltage (Recommend excitation) 0.5-10V.
The maximum excitation voltage (Maximum excitation) 15V.
RED: E+ BLACK: E- WHITE: V- BLUE or GREEN: V+
