PENTAIR Vessel Tank | FRP Vessel Tank malaysia | Vessel Tank Malaysia
Category:FRP Vessel Tank
De
Detailed Product Descript

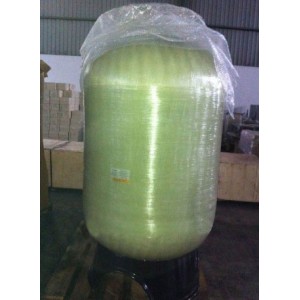

FRP Pressure Vessel Tank
Applying to residential, commercial and industrial softening and filtering systems.
INDUSTRIAL FILTRATION
Color: natural and gray
water treatment vessels with FRP liner :
those tank ,broadly apply to treatment and storage of commercial and industrial water.due to the qnique fearures of fro,the vessevl have the perfect corrosion-resistant,the vessels can be optionally eqiopped with fleck the vessel with higher pressure-resistant capability ,
Materrial of thewater treatment vessels with FRP liner:
inner shell material:FRP
available inlets:see chart
Operating parameters: Maximum operating pressure:1.0Mpa
Maximum operating temperature:49c(120F)
Design parameters:Cycel test:100.000 cycles wit out leakage
tECHNICAL PARAMETERS:
|
SPEC SIZE |
DIMETER (mm) |
HIGHER(mm) |
PNEN TYPE |
|
|
|
|
INCH |
MM |
|
NET HIGH |
TOTAL HIGH |
UP |
DOWN |
|
16*85(PE) |
Φ400×1650 |
405 |
1640 |
1765 |
4”UN |
4” |
|
16*72(FRP) |
Φ400×1800 |
405 |
1795 |
1850 |
2.5”NPSM |
/ |
|
16*72(FRP) |
Φ400×1800 |
405 |
1795 |
1850 |
4”UN |
/ |
|
16*72(FRP) |
Φ400×1800 |
405 |
1795 |
1950 |
4”UN |
4” |
|
18*65(PE) |
Φ450×1650 |
475 |
1665 |
1900 |
4”UN |
/ |
|
18*65(PE) |
Φ450×1650 |
475 |
1665 |
1900 |
4”UN |
4” |
|
20*72(FRP) |
Φ500×1800 |
517 |
1800 |
2040 |
4”UN |
6”FLG |
|
21*62(PE) |
Φ530×1550 |
545 |
1600 |
1840 |
4”UN |
/ |
|
21*62(PE) |
Φ530×1550 |
545 |
1600 |
1840 |
4”UN |
4”FLG |
|
24*72(FRP) |
Φ600×1800 |
612 |
1800 |
2040 |
4”UN |
6”FLG |
|
30*72(FRP) |
Φ750×1800 |
762 |
1800 |
2040 |
4”UN |
6”FLG |
|
36*72(FRP) |
Φ900×1800 |
930 |
1800 |
2140 |
4”UN |
6”FLG |
|
40*72(FRP) |
Φ1000×1800 |
1020 |
1800 |
2145 |
6”FLG |
6”FLG |
|
48*72(FRP) |
Φ1200×1800 |
1220 |
1800 |
2110 |
6”FLG |
6”FLG |
|
48*96(FRP) |
Φ1200×2400 |
1220 |
2400 |
2695 |
6”FLG |
6”FLG |
|
60*96(FRP) |
Φ1500×2400 |
1520 |
2400 |
2655 |
6”FLG |
6”FLG |
