membrane | ro membrane | dow ro membrane | dow ro membrane malaysia | filmtec ro membrane | DOW FILMTEC HSRO-390-FF
Product De
Detailed Product Descript
1) Membrane Type : Polyamide TFC
2) Maximum pressure drop : 150 psi
3) Permeate Flow Rate : 9,000 gpd

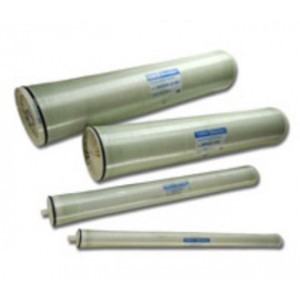

DOW FILMTEC RO MEMBRANE HSRO-390 FF
Features:
HSRO elements, manufactured on advanced automated equipment, have the highest active membrane area available in the industry today. This high area allows system designs with either lower operating flux or cost savings from fewer membrane elements. The full-fit configuration minimizes stagnant areas and is an ideal choice for applications requiring a sanitary design. All components comply with U.S. Food & Drug Administration standards
Specifications:
|
|
HSRO-390FF |
|
|
Part number |
170701 |
|
|
Nominal Active Surface Area |
390 (36) ft2 (m2) |
|
|
Applied Pressure |
150 (10.3) |
|
|
Permeate Flow Rate |
9,000 (34) gpd (m3/d) |
|
|
Stabilized Salt Rejection |
99.5 % |
|
|
|
||
|
Membrane Type |
Polyamide Thin-Film Composite (Filmtech) |
|
|
Maximum Operating Temperature |
113°F (45°C) |
|
|
Maximum pressure drop |
15 psig (1.0 bar) |
|
|
pH Range, Continuous Operation |
3-10 |
|
|
pH Range, Short Term Cleaning |
1-12 |
|
|
Maximum Feed Silt Density Index |
SDI 5 |
|
