PRODUCTION SHOP REBAR CUTTERS & BENDERS

PRODUCTION SHOP REBAR CUTTERS & BENDERS
Dependable 3-phase elecric motors and simple, rugged mechanisms ensure high-speed production


Rebar Cutters

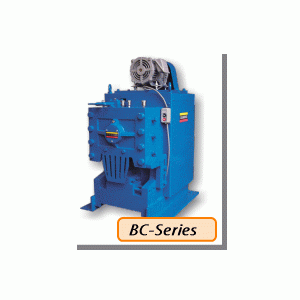

BC-32A/BC-42A/BC-52 Powerful cutters for the production shop. SPECIFICATIONS Model BC-32A BC-42A BC-52 Max.rebar diameter 32mm (1 1/4") 41mm 51mm Max.tensile strength 450N/mm² Height of shear 330mm 373mm 430mm Blade length 85mm 98mm Power supply 200V/380V/415V (3 pahse motor) Power Input 1.5 kw 2.2 kw 3.7 kw Weight 450 kg 610 kg 980 kg Dimensions(mm) 610x545x965 700x580x1085 940x560x1270

Rebar Benders SPECIFICATIONS Model ER-25 ER-32 ER-42 Max.rebar diameter 25mm 32mm 41mm Max.tensile strength 450N/mm² Height of Bending table 750mm 730mm Bending angle(degrees) Up to 180 Power supply 200V/380V/415V (3 phase motor) Power Input 1.5 kw 2.2 kw Weight 340 kg 420 kg 660 kg Dimensions(mm) 740x730x870 940x820x780 1150x970x87 ER-25/ER-32/ER-42 ER BENDERS permit three bending angles to be pre-set.

Ring Benders OSB-22/OSB-25/OSB-32 Strong, simple ring benders for ease of production. SPECIFICATIONS Model OSB-22 OSB-25 OSB-32 Max.rebar diameter 22mm 25mm 32mm Max.tensile strength 450N/mm² Min. ring diameter 550mm 700mm 800mm Power supply 200V/380V/415V Power Input 1.5 kw 2.2 kw Weight 190 kg 340 kg 500 kg Dimensions(mm) 590x720x870 750x830x870 910x880x925
