AUTOMATIC CUTTING LINE & BENDERS
Our semi-automatic cutting lines are of modular design. Shorter or longer systems as well as lines without the cutter can, of course, be supplied upon request. We suggest the cutter Model 5LH-52. The controls are clear and simple and an easy-to read digital indicator ensures the length is always precisely set.

Cutting Lines
Model LS-120BA, 180BA, 200BA




Speed up production and elliminate physical effort.

SPECIFICATIONS

Model Width of conveyor Cutter Max. rebar diameter Max. tensile strength Rebar capacity 25mm Rebar capacity 32mm Rebar capacity 38mm
LS-120BA 120mm 5L-52 38mm 550N/mm² 3 bars 1 bars 1 bars
LS-180BA 5LH-52 3 bars 2 bars 1 bars
LS-200BA 5S-52 6 bars 3 bars 2 bars


The DAB series of fully automatic, multi-head benders are the ultimate in production efficiency. Operation cannot be
easier: choose one of the pre-set hoop/stirrup patterns, set the side lengths and press the footswitch. Features include
a motor-driven stock loader and a pneumatic clamp to secure the rebars during the bending process.

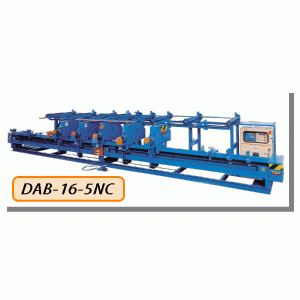

Bending Lines Model DAB-16-5NC (5-bending head)
SPECIFICATIONS
Model DAB-16-5NC
Max. rebar diameter 16mm (5/8")
Max. tensile strength 450N/mm²
Rebar capacity 10mm 7 bars
13mm 5 bars
16mm 2 bars
Power supply 200V (3-phase)
Power Input 6.5 kw
Weight 3200 kg
Diamensions(mm) 7410x1900x1300

Bending Lines Model DAB-25-3 (3-bending head)
SPECIFICATIONS
Model DAB-25-3
Max. rebar diameter 25mm (1")
Max. tensile strength 450N/mm²
Rebar capacity 10mm 9 bars
13mm 7 bars
16mm 5 bars
20mm 2 bars
22mm 1 bar
25mm 1 bar
Power supply 200V (3-phase)
Power Input 7.2 kw
Weight 3300 kg
Diamensions(mm) 9400x1920x1200
