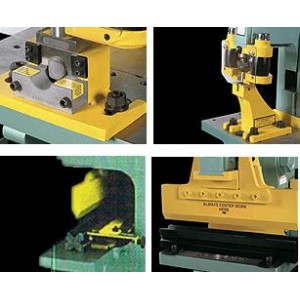

Piranha Accessories

A)   Pipe/Tube Notching Attachment

• Mounts easily to platen

• Spring-loaded return

• Standard base die accommodates several die sizesAllows single notch in Schedule 40 pipe 3/4 through 2” diameter*

• Notching dies available for 3/4’, 1”, 1-1/4, 1-1/2, 2”

• Attaches to punch end of ironworker

*Contact Piranha for options for larger pipe or special notching applications.


B)   Channel Die Block

Punch channel legs and other structural shapes

• Use standard punch holder and material stripper

• Punch close to material web with offset dies

• Mounts in place of standard die block

• Die is flush with front of channel die block

• Designed to punch a hole in the leg of a 3” through 6’ standard weight channel

• Designed to punch a hole in the web of a 4’ through 6” standard weight channel

• 50 ton punching capacity for all models

• Uses urethane punch attachment (P-40, P-50, P-70, P-90 and P-120)

Note: The machine stroke control must be used with this option.


C)   Bending Backgauge

• Produce repeatable parts with a backgauge specifically made for the bending attachment

• Use the bending backgauge as a hard stop to increase productivity when making multiple parts

• The backgauge eliminates the need for manually
  scribing bend lines

D)   Bending Attachments

• Standard on P-40 (6’), P-50 (8”), P-70 (12”), P-90 (12) and P-120 (12’)

• Optional sizes range from 12’ to 48”. See specifications chart for sizes available for each model.

E)   28XX Punch Attachment

• Accommodates all standard 28XX tooling

• Expand punching capacity up to 5”

• Mounts in place of standard punch holder and die block

Notes: A material stripper is NOT furnished with these attachments. Standard 28XX tooling is for 50-ton and lighter applications. For applications greater than 50 tons, a heavy-duty punch is required. Please refer to the Piranha Tooling & Attachments catalog for more information.


F)   Press Brake Tooling Holders

• Available for models P-50, P-70, P-90, P-120, P11-65, P11-88, P11-110, P11-140, SEPP-65, SEPP-88 and SEPP-140

• Allows use of press brake punches and dies for precision bending

• Lengths up to 24

• Accepts a 1/2” wide by 5/8” tall tang (tooling sold separately)

G)   Quickset Gauging Tables

• Fast set-up for punching multiple holes

• Includes plate and angle-gauging guide bars

• Left and right hand extensions available in 5’ and 10’ lengths

• Gauging table mounts on machine platen table without removing punch attachment or die block

• Table and guide bars have measuring rules

• All models have 3 left-hand stops on the table and 6 stops (3 left-hand and 3 right-hand) on the angle guide bar

H)   Channel Shear

• Attaches to punch end of ironworker in place of standard punch holder

• Each cut removes 1/2’ slug from standard weight channel

• Slug slides out the front of the shear after each cut

• Pinned slide block adjusts to accommodate different widths of channel

• Quick release locking handle secures material

I)   Angle Miter Shear

• Shear 6” x 6” x 1/2” @ 90°

• Shear 5” x 5” x 1/2” @ 45°

J)   Mechanical Backgauges

• Allows quick set-up to repeat shearing length with a mechanical backstop

• Positions in angle, plate and round bar sections

• Lengths available—3’, 6’, 9, 12’

• Bolts on with no machine modifications

• Easy access of sheared material

• Backgauge allows for infinite adjustment

• Compression sleeve for positive locking and no marring of the gauge bar

K)   Electrical Backgauge

• Electronic version automatically cycles the ironworker when material contacts the backgauge

• Available for models P-40, P-50, P-70, P-90, P-120, P11-65, P11-88, P11-110, P11-140

• Incorporates all features of the mechanical backgauge

• Available with new machines or as an option for existing machines*

• Dedicated power switch and run light standard

• Lengths available—3’, 6’, 9, 12—leg support included with 9 and 12’ lengths

Note: Field installation requires minor modifications to electrical components.


L)   1-1/2” Oversize Punch Attachment

• Punches up to 1-9/16” hole within capacity limits of the machine

• Mounts in place of standard punch holder and die block

• Use same stripper action as standard punch attachment

• Use No. EF punches and No. JF dies

• Available in P-40, P-50, P11-35 and SEPP-35 models

M)   Roller Feed Tables

• For fast, easy feeding of bar, plate an angle

• Available in 5’ increments—bolt together for longer lengths

• Adjust to accommodate floor height and machine type

• Includes rollers for angle and flat bar sections

• 20” wide flat rollers; 6” angle rollers
