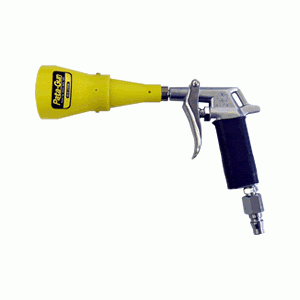

SPG-40 & 40G Nozurupatagan rotating wave
SPG-40 & 40G Nozurupatagan rotating wave is treated as if they were shaking from side to side until now extensive air gun, suitable for processing in a wide range. If the rotation if using your first wave Nozurupatagan advised to SPG-40 & 40G.
Intermittent shock adversely extensively by high-speed fluid jet exits are made of soft urethane cover out from behind. Effect than conventional air gun pressed in air, an air strike by Patagan effect, saving air consumption, processing time allows.

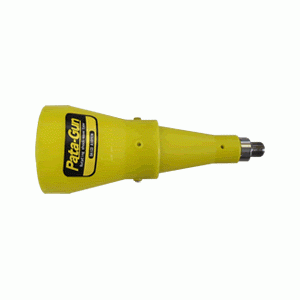

- The air nozzle rotates at high speed from the back cover of the nozzle tube
- By rotating, intermittent shock waves far reaching
- Allows draining to remove dust more effectively than conventional air gun
-
By rotating the injection port of the nozzle tube, the flow rate remains the same, reducing the processing time, air consumption savings.
| Casing |
POM plastic (polyacetal) |
|---|---|
| Internal rotor |
POM plastic (polyacetal) |
| Bearing |
SUJ2 iron (grease filled out) |
| The nozzle tube | Made in soft polyurethane |
| Connection |
BS (nickel plated) |

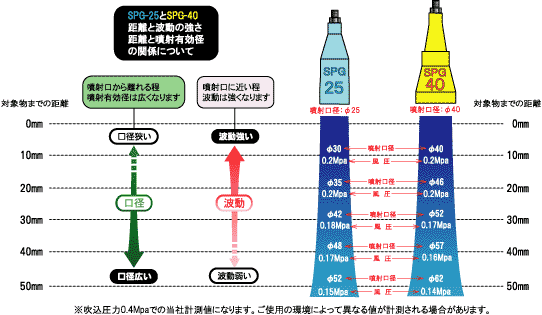

| Injection bore | φ40 |
| Using flow | 100 ~ 110NL/min |
|---|---|
| Fluids available |
Air- inert gas |
|
Pressure air gun |
0.4 ~ 0.45Mpa. |
|
Pressure pipe fixed |
0.3 ~ 0.35Mpa. |
| Operating Temperature | 10 ~ 40 ℃ |
|
Product Weight (Unit) |
107g |
|
Using flow (0.4Mpa) |
100NL/min |
- Various filters clean the filter media
- Cleaning and recycling equipment
- After draining the washing of the screen for printing
- Clean the aluminum fins
- Draining of the backside of the boxes and uneven grid
- Stirred dry granular plastic material
- Draining air conditioner filters after cleaning, etc.
- Cleaning the car seat
- Cleaning of industrial machinery
- Molded plastic parts before painting drained
- Kind of carpet cleaning
General fields
- Solid food packaging recess draining
- Want minerals - Tabotoru, draining of the handle
- Food and drained before the date of printing
- Net conveyor chain drained soil removal
- Workwear dust fly
- After washing the food trays drained
Food field
- After washing the semiconductor carrying trays drained
- Garbage on the board, removal of dust
- Prevent sagging out of the solder after solder bath board
Electronics industry
- Oil draining off die-cast parts
- Removal of excess rust preventive stamping out
- Deburring after machining thin metal machine
- Draining abrasive dust removal and deburring of molded parts and plastic parts such as instrument panel lights
