(1). General Machine Models of Golden Laser Cutting Machines For Metal:
Model No.: GJMSJG-6040DT Working Area: 400mm×600mm
Model No.: GJMSJG-8060DT Working Area: 600mm×800mm
Model No.: GJMSJG-13090DT Working Area: 1300mm×900mm
Model No.: GJMSJG-130250DT Working Area: 1300mm×2500mm
Model No.: GJMSJG-150300DT Working Area: 1500mm×3000mm
Laser Type: YAG lamp-pumped solid laser generator
Laser Power: 500W / 650W
Working Table: Rack working platform
Cutting Speed: 0~30000mm/min
Repeating Positioning Accuracy: ±0.1mm
Motion System: Offline CNC system, Servo motor, Precision ball screw drive
Cooling System: Constant temperature water chiller
Power Supply: AC380V±5% 50/60Hz
Supporting Format: PLT, DXF, BMP, AI, DST, DWG, etc.
(2) Laser Cutting Machine Application
Materials: stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, galvanized sheet, aluminum, aluminium, copper, brass, bronze, gold, silver, titanium plates, metal sheets, metal plates, metal tubes and pipes.Cut the shape of Circle, Triangle, Octagonal etc.
Industries:laser cutting machines have been widely used in manufacture billboard, advertising, signs, signage, metal letters, LED letters, advertising letters, sheet metal processing, metals components and parts, ironware, chassis, racks & cabinets processing, kitchen ware, metal crafts, metal artware, elevator panel cutting, hardware, auto parts, jewelry, glasses frame , nameplates, electronic parts, etc.

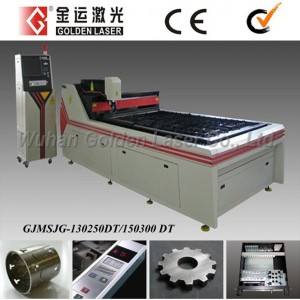

GJMSJG-150300DT Large Format Yag Laser Cutting Machine
Machine introduction:
It adopts ND: YAG medium, special designed flying light route system, high precision ball screw gantry structure working table, which max. working area is 1500mm*3000mm.
Stable light route, high precision, quick process speed.
The hot distortion is very few, and the cutting slot of straight side is small, the cut edge is very smooth.
It adopts CNC controlling technology with professional software, which supports AI, BMP, PLT, DXF file formats, and it is easy to operate.
Advantages:
1. Gantry style design. The laser optical distance is shortest, there is no laser energy lose during laser transmission. Make sure in the whole cutting area the cutting result is the same.
2. Laser cutting is no touch process. Laser spot size is as small as 0.1mm after focus. So there is no design limit with laser process.
3. The cutting edge is smooth, no need post-process after laser cutting
4. Control system is LCD screen offline control, and just use USB cable connect machine USB port with computer USB port, then downloading images from computer to machine. Operate is easy.
Applicable materials:
Applicable materials:
stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, galvanized sheet, aluminum, aluminium, copper, brass, bronze, gold, silver, titanium plates, metal sheets, metal plates, metal tubes and pipes, etc.
