首页 > Products > Mechanical Parts & Fabrication Services > Solenoid Valves

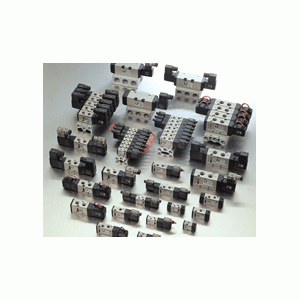

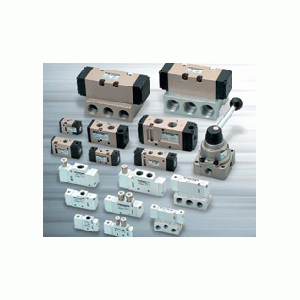

Solenoid Valve, Hand Valve, Foot, Pilot Valve


单价 面议对比
询价 暂无
浏览 1213
发货 MalaysiaSelangorSubang Jaya预售，付款后7天内
品牌 SYM,SMC,CKD,KOGANEI,TPC,YSC,
型号 VF,SV,SY,VJ,SYJ,VH
规格 2/2,3/2,4/2,5/2,5/3 Valve
过期 长期有效
更新 2015-04-12 22:10

联系方式
加关注0

GENTLE AUTOMATIC SOLUTION SDN BHD - Pneumatic Equipment

Personal第1年
资料通过认证
保证金未缴纳
进入主页 更多Products
详细说明

5 Port Solenoid Valve   SY
metal Seal/Rubber Seal



Model Flow characteristics Applicable
cylinder
size		 Power
consumption
(W)
4/2→5/3 (A/B→EA/EB)
C[dm3/(s·bar)] b
SY3000  1.6 0.19 φ50 0.4 (Standard)
0.15 (With power
saving circuit)
SY5000  3.6 0.17 φ63
Features
  • Same valve width. Flow increased by up to 80%.
  • SY3000: valve width 10 mm, SY5000: valve width 15 mm
  • Life: 200 million cycles (metal seal), 70 million cycles (Rubber seal)
  • Plug-in metal base (IP40) / Plug-in connector connecting base (IP67)
  • Bottom ported is prepared. Space saving

5 Port Solenoid Valve   SY
Rubber Seal



Model/CAD Flow characteristics Applicable
cylinder
size		 Power
consumption
(W)
4/2→5/3 (A/B→EA/EB)
C[dm3/(s·bar)] b Cv
SY3000  1.1 0.30 0.26 φ40 0.35 (Standard)
0.1 (With power
saving circuit)
SY5000  2.8 0.29 0.66 φ63
SY7000  4.5 0.27 1.1 φ80
SY9000  10 0.29 2.5 φ100
Features
  • Combined mounting of 3 port valve and 5 port valve is possible.
  • Electricity consumption: 0.1 W (with power saving circuit)
  • A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold
5 Port Solenoid Valve   VF




Model/CAD Flow characteristics Applicable
cylinder
size		 Power
consumption
(W)
4/2→3/5 (A/B→EA/EB)
C[dm3/(s·bar)] b Cv
VF1000  0.53 0.28 0.13 φ40 1.55 (Standard)
0.55
(With power
saving circuit)
VF3000  3.1 0.32 0.75 φ80
VF5000  10.0 0.49 2.9 φ125
Features
  • Built-in full-wave rectifier (AC)
  • Built-in strainer in the pilot valve


5 Port Solenoid Valve   VFS
metal Seal



Model/CAD Flow characteristics Applicable
cylinder
size		 Power
consumption
(W)
4/2→5/3 (A/B→R1/R2)
C[dm3/(s·bar)] b Cv
VFS1000  1.8 0.19 0.40 φ50 1.8
VFS2000  3.5 0.32 0.85 φ63
VFS3000  6.8 0.12 1.6 φ80
VFS4000  12 0.22 3.1 φ140
VFS5000  20 0.13 4.7 φ160
VFS6000  38 0.10 9.0 φ200
Features
  • metal seal main valve construction
  • Extensive size variations
  • For driving medium and large cylinders
  • A wide variety of manifold options
  • Compatible with control units (VFS2000/3000/4000, Base mounted type)

5 Port Solenoid Valve   VFR
Rubber Seal



Model/CAD Flow characteristics Applicable
cylinder
size		 Power
consumption
(W)
4/2→5/3 (A/B→EA/EB)
C[dm3/(s·bar)] b Cv
VFR2000  3.0 0.27 0.7 φ63 1.8
VFR3000  8.7 0.38 2.2 φ100
VFR4000  14 0.3 3.8 φ125
VFR5000  25 0.21 6.2 φ140
VFR6000  41 0.17 9.7 φ200
Features
  • Rubber seal main valve construction
  • Extensive size variations
  • For driving medium and large cylinders
5 Port Air Operated Valve   VFA
Rubber Seal



Model/CAD Flow characteristics Applicable
cylinder size
4/2→5/3 (A/B→EA/EB)
C[dm3/(s·bar)] b Cv
VFA3000  2.6 0.23 0.62 φ63
VFA5000  12 0.32 3.0 φ140
Features
  • Same manifolds as Series VF3000/5000 are prepared.

5 Port Air Operated Valve   VPA
Rubber Seal



Model/CAD Flow characteristics Applicable
cylinder size
4/2→5/3 (A/B→EA/EB)
C[dm3/(s·bar)] b Cv
VPA4x50  21 0.28 5.6 φ140
VPA4x70  Effective area: 300 φ300
Features
  • Same manifolds as Series VP4x50 are prepared.

4/5 Port Air Operated Valve   VSA
metal Seal



Model/CAD Flow characteristics Applicable
cylinder size
A/B→EA/EB
C[dm3/(s·bar)] b Cv
VSA4x20  5.6 0.51 1.4 φ80
VSA4x30  9.6 0.17 2.4 φ100
VSA4x40  16 0.32 4.2 φ140
Features
  • metal seal main valve construction

3 Port Air Operated Valve   SYJA
Rubber Seal



Model/CAD Flow characteristics
2→3 (A→R)
C[dm3/(s·bar)] b Cv
SYJA300  0.36 0.31 0.089
SYJA500  1.2 0.48 0.34
SYJA700  2.7 0.34 0.69
Features
  • Same manifolds as Series SYJ300/500/700 are prepared.
  • Manual override is possible.

3 Port Air Operated Valve   VZA
metal Seal



Model Flow characteristics
4/2→5/3 (A/B→EA/EB)
C[dm3/(s·bar)] b Cv
VZA200  0.85 0.35 0.22
VZA400  2.2 0.17 0.53
Features
  • metal seal main valve construction

3 Port Air Operated Valve   VTA
Rubber Seal



Model/CAD Flow characteristics
2→3 (A→R)
C[dm3/(s·bar)] b Cv
VTA301  0.60 0.29 0.15
VTA315  1.7 0.39 0.45
Features
  • Universal porting
  • Possible to use with a pressure of 0 MPa or more.

3 Port Air Operated Valve   VGA
Rubber Seal



Model/CAD Flow characteristics
2→3 (A→R)
C[dm3/(s·bar)] b Cv
VGA342  38 0.32 9.8
Features
  • Easy conversion to N.C. or N.O.

3 Port Air Operated Valve   VPA
Rubber Seal



Model/CAD Flow characteristics
2→3 (A→R)
C[dm3/(s·bar)] b Cv
VPA300  3.8 0.14 0.9
VPA500  8.8 0.13 2.0
VPA700  15.0 0.17 3.4
Features
  • Same manifolds as Series VP300/500/700 internal pilot manifolds are prepared.
  • Easy conversion to N.C. or N.O.

Mechanical Valve   VM,VZM,VFM




Description Model/CAD Number of ports
Mechanical valve VM1000,VM100,VM200,VM400  2/3 ports
VZM500,VZM400  5 ports
VFM300,VFM200
VM800  3 ports
Features
  • A wide variety of valves are available for all types of air systems.
  • Small mounting space with a compact body.

Blow Gun   VMG




Series/
CAD		 Port size Operating
pressure
range (MPa)		 Effective area
(mm2)		 Nozzle port
size
VMG  Rc,NPT,G,1/4,3/8 0 to 1.0 30 Rc1/4
Features
  • Reduction of 2,000 m3 per annum is possible. (Energy saving)

  • Pressure loss 1% or less (Nozzle diameter: φ2.5)
KN  Features
  • Nozzle for blowing
  • Nozzle with male thread, high efficient nozzle with male thread, low noise nozzle with male thread, long steel pipe nozzle.

Transmitters   VR




Description Model/CAD
Relay valve VR4151,4152
Shuttle valve VR1210,1220,VR1210F,VR1220F
AND valve VR1211F
Time delay
valve		 VR2110
Pneumatic
Indicator		 VR3100,3110
Pneumatic-electric
relay		 VR3200,3201
Features
  • Air transmitters used for a variety of All Air System

Two Hand Control Valve   VR51




Model/CAD Sonic conductance: C Port size Applicable
tubing
material
Metric
size		 Inch
size
VR51  0.3 dm3/(s·bar) φ6 φ1/4 Nylon
Soft nylon
Polyurethane
FR soft nylon
FR double layer
FR double layer
polyurethane
Features
  • Equipment having a safety circuit
  • When starting an operation, accidents such as fingers being caught can be prevented, by requiring both hands to start these push button operated valves.
  • An output is available through synchronized, two-handed operation (within 0.5 s)

Finger Valve   VHK
2 or 3 port valve selectable



Description Model/CAD Type Port size
Finger Valve VHK2  2 port valve φ4 to φ12
M5,1/8 to 1/2
VHK3  3 port valve
Features
  • The valve direction clearly indicates whether the valve is open or closed.
  • Small knob operating force (0.04 to 0.14 N·m)

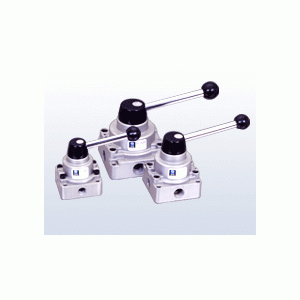

Hand Valve   VH




Description Model/CAD Max.
operating
pressure		 Port size
Hand valve VH200  1.0 MPa 1/4
VH300  1/4,3/8
VH400  1/4,3/8,1/2,3/4
VH600  0.7 MPa 3/4,1
Features
  • The direction of air flow can be verified at a glance by the orientation of the handle.

Conforming to OSHA Standard/Pressure Relief 3 Port Valve with Locking Holes   VHS
For pressure relief



Description Model/CAD Port size
Pressure relief
3 port valve with
locking holes		 VHS20  1/8,1/4
VHS30  1/4,3/8
VHS40  1/4,3/8,1/2,3/4
VHS50  3/4,1
Features
  • Conforming to OSHA standard (Occupational Safety and Health Administration Department of Labor).
  • Manually operated valve can be used to prevent accidents caused by residual pressure in pneumatic lines.
  • Possible to verify the supply and exhaust status of air flow at a glance.
  • When in the exhaust position, the valve may be padlock secured. Prevents accidental start-ups while personnel are cleaning or servicing equipment.

Conforming to OSHA Standard/Pressure Relief 3 Port Valve with Locking Holes (Double Action Type)   VHS
For pressure relief



Description Model/CAD Port size
Pressure relief
3 port valve with
locking holes		 VHS4510  1/4,3/8,1/2
VHS4510-06  3/4
VHS5510  3/4,1
Features
  • When in the exhaust position, the valve may be padlock secured. Prevents accidental start-ups while personnel are cleaning or servicing equipment.
  • Possible to verify the supply and exhaust status of air flow at a glance.
  • Push the handle and then turn. Double action construction prevents erroneous operation.

Residual Relief 3 Port Valve   VHS
For pressure relief



Description Model/CAD Port size
Residual relief
3 port valve		 VHS400  1/4,3/8,1/2
VHS500  3/4
Features
  • Easy to operate
  • The direction of air flow can be verified at a glance by the orientation of the handle.
3 Port Air Operated Valve   VPA
Rubber Seal



Model/CAD Flow characteristics
2→3 (OUT→EXH)
C[dm3/(s·bar)] b Cv
VPA3145  42 0.39 10
VPA3165  Effective area: 330
VPA3185  Effective area: 670
Features
  • High flow capacity, small exhaust resistance
