Modular Type FRL.

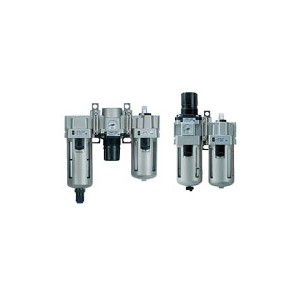

Modular Type F.R.L. Unit AC |
|
|
|
Combination equipment |
Series/CAD |
Port size |
Set pressure
(MPa) |
Air filter, Regulator,
Lubricator |
AF+AR+AL |
M5 x 0.8
1/8,1/4,3/8,
1/2,3/4,1 |
0.05 to 0.85
(M5: 0.05 to 0.7) |
Filter regulator,
Lubricator |
AW+AL |
M5 x 0.8
1/8,1/4,3/8,
1/2,3/4,1 |
0.05 to 0.85
(M5: 0.05 to 0.7) |
Air filter, Regulator |
AF+AR |
M5 x 0.8
1/8,1/4,3/8,
1/2,3/4,1 |
0.05 to 0.85
(M5: 0.05 to 0.7) |
Air filter, Mist separator,
Regulator |
AF+AFM+AR |
1/8,1/4,3/8,
1/2,3/4 |
0.05 to 0.85 |
Filter regulator,
Mist separator |
AW+AFM |
1/8,1/4,3/8,
1/2,3/4 |
0.05 to 0.85 |
|
|
|
|
Series/CAD |
Port size |
Filtration (μm) |
AF10 to 60 |
M5 x 0.8
1/8,1/4,3/8,1/2,3/4,1 |
5 |
|
|
|
|
Series/CAD |
Port size |
Filtration (μm) |
AFM20 to 40 |
1/8,1/4,3/8,1/2,3/4 |
0.3 |
|
|
|
|
Series/CAD |
Port size |
Filtration (μm) |
AFD20 to 40 |
1/8,1/4,3/8,1/2,3/4 |
0.01 |
|
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
AR10 to 60 |
M5 x 0.8
1/8,1/4,3/8,1/2,3/4,1 |
0.05 to 0.85
(M5: 0.05 to 0.7) |
|
Regulator with Backflow Function AR |
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
AR20K to 60K |
1/8,1/4,3/8,1/2,3/4,1 |
0.05 to 0.85 |
Features |
- Built-in mechanism to release air pressure from the outlet side efficiently and quickly. (Built-in check valve: With backflow function)
|
|
|
|
|
Series/CAD |
Port size |
Bowl capacity (cm3) |
AL10 to 60 |
M5 x 0.8
1/8,1/4,3/8,1/2,3/4,1 |
7 to 135 |
|
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
Filtration (μm) |
AW10 to 40 |
M5 x 0.8
1/8,1/4,3/8,1/2,3/4 |
0.05 to 0.85
(M5: 0.05 to 0.7) |
5 |
AW60 |
3/4,1 |
|
Filter Regulator with Backflow Function AW |
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
Filtration (μm) |
AW20K to 40K |
1/8,1/4,3/8,1/2,3/4 |
0.05 to 0.85 |
5 |
AW60K |
3/4,1 |
Features |
- Built-in mechanism to release air pressure from the outlet side efficiently and quickly. (Built-in check valve: With backflow function)
|
|
Mist Separator Regulator AWM |
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
Filtration (μm) |
AWM20 to 40 |
1/8,1/4,3/8,1/2 |
0.05 to 0.85 |
0.3 |
|
Micro Mist Separator Regulator AWD |
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
Filtration (μm) |
AWD20 to 40 |
1/8,1/4,3/8,1/2 |
0.05 to 0.85 |
0.01 |
|

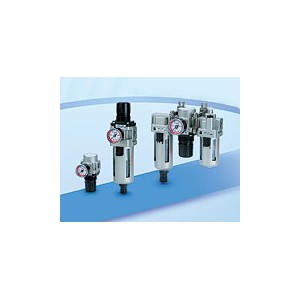

Modular Type F.R.L Unit ACG |
|
|
|
Combination equipment |
Series/CAD |
Port size |
Set pressure
(MPa) |
AF Air filter, Regulator with integral pressure gauge,
Lubricator |
AF+ARG+AL |
1/8,1/4,
3/8,1/2 |
0.05 to 0.85 |
Filter regulator with integral
pressure gauge, Lubricator |
AWG+AL |
Air filter, Regulator with
integral pressure gauge |
AF+ARG |
Air filter, Mist separator, Regulator with
integral pressure gauge |
AF+AFM+ARG |
Filter regulator with integral
pressure gauge, Mist separator |
AWG+AFM |
Features |
- Improves visibility of pressure gauges located in various locations.
|
|
Regulator with Built-in Pressure Gauge ARG |
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
ARG20 to 40 |
1/8,1/4,3/8,1/2 |
0.05 to 0.85 |
Features |
- Improves visibility of pressure gauges located in various locations.
|
|
Regulator with Built-in Pressure Gauge with Backflow Function ARGxK |
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
ARG20K to 40K |
1/8,1/4,3/8,1/2 |
0.05 to 0.85 |
Features |
- Improves visibility of pressure gauges located in various locations.
|
|
Filter Regulator with Built-in Pressure Gauge AWG |
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
Filtration (μm) |
AWG20 to 40 |
1/8,1/4,3/8,1/2 |
0.05 to 0.85 |
5 |
Features |
- Improves visibility of pressure gauges located in various locations.
|
|
Filter Regulator with Built-in Pressure Gauge with Backflow Function AWGxK |
|
|
|
Series/CAD |
Port size |
Set pressure (MPa) |
Filtration (μm) |
AWG20K to 40K |
1/8,1/4,3/8,1/2 |
0.05 to 0.85 |
5 |
Features |
- Improves visibility of pressure gauges located in various locations.
|
|
|
|
|
Series/CAD |
Port size |
Applicable products |
E210 |
1/8, 1/4 |
Modular F.R.L. equipment (Filters, regulators, lubricators, etc.)
2 port solenoid valve VCA/VX/VXD/VXZ
3 port solenoid valve VP300/500/700 |
E310 |
1/4, 3/8 |
E410 |
1/4, 3/8, 1/2 |
Features |
- Easy connection to existing products.
- Can be freely rotated, thus allowing a wide selection of mounting directions.
- Can be connected to existing products of different size.
- Reduced space/piping maintenance cost
|
|
|
|
|
Series/CAD |
Port size |
Operating pressure (MPa) |
AV2000 to 5000 |
1/4,3/8,1/2 |
0.1 to 1 |
Features |
- A starting valve that can supply air at a low speed and exhaust it at a high speed by blocking the air supply.
|
|
|
|
|
Series/CAD |
Port size |
Filtration (μm) |
AF800·900 |
11/4, 11/2, 2 |
5 |
|
|
|
|
Series/CAD |
Air flow capaciy L/min (ANR) |
Port size |
AMG |
300 to 12000 |
1/8 to 2 |
Features |
- Compressed air without water can be obtained.
- Water dro removal ratio: 99%
|
|
|
|
|
Series/CAD |

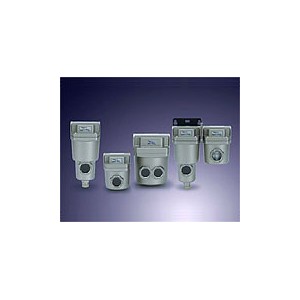

Filtration (μm) |
Air flow L/min (ANR) |
Port size |
AFF |
3 (Filtration efficiency 99%) |
300 to 42000 |
1/8 to 4B flange |
Features |
- Can remove impurities such as oil, water and foreign matter in compressed air. It improves the function of the ownward dryer, extends the life of the precision filter, and prevents trouble with the equipment.
|
|
|
|
|
Series/CAD |
Filtration (μm) |
Air flow L/min (ANR) |
Port size |
AM |
0.3
(Filtration efficiency 99.9%) |
300 to 12000 |
1/8 to 2 |
Features |
- Can separate and remove oil mist and remove solid particles such as rust or carbon of 0.3 μm or larger.
|
|
|
|
|
Series/CAD |
Filtration (μm) |
Air flow L/min (ANR) |
Port size |
AMD |
0.01
(Filtration efficiency 99.9%) |
200 to 40000 |
1/8 to 6B flange |
Features |
- Can separate and remove aerosol state oil mist and remove carbon or dust of 0.01 μm or larger.
- Should be used as a prefilter of compressed air for precision instruments or clean room requiring high levels of clean air.
|
|
Micro Mist Separator with Pre-filter AMH |
|
|
|
Series/CAD |
Filtration (μm) |
Air flow L/min (ANR) |
Port size |
AMH |
0.01
(Filtration efficiency 99.9%) |
200 to 12000 |
1/8 to 2 |
Features |
- Integrates Series AM and Series AMD to achieve a reduction in installation space and to reduce piping installation labor and costs.
- Can separate and remove aerosol state oil mist and remove carbon or dust of 0.01 μm or larger.
- Should be used as a prefilter of compressed air for precision instruments or clean room requiring high levels of clean air.
|
|
|
|
|
Series/CAD |
Filtration (μm) |
Air flow L/min (ANR) |
Port size |
AME |
0.01
(Filtration efficiency 99.9%) |
200 to 12000 |
1/8 to 2 |
Features |
- Can separate and absorb aerosol state fine oil particles and change the oil lubricating compressed air to oilless equivalent air.
- Should be applied for filtration of compressed air requiring a high degree cleanliness such as the compressed air for coating lines, for clean rooms and for equipment that must avoid oils.
|
|
|
|
|
Series/CAD |
Filtration (μm) |
Air flow L/min (ANR) |
Port size |
AMF |
0.01
(Filtration efficiency 99.9%) |
200 to 40000 |
1/8 to 2 |
Features |
- Efficiently removes odors in compressed air with an activated carbon element. The unit is designed for clean rooms where odors must be removed.
- Activated carbon element with large filtration area.
- Easy replacement and installation of elements.
|
|
|
|
|
Type |
Series/CAD |
Operating pressure |
Filtration |
Cartridge type
disc |
SFA100/200/300 |
Max.1.0 MPa
(Vacuum: 1.3 x 10-6 kPa) |
0.01 μm
(Filtration efficiency
99.99%) |
Cartridge type
straight |
SFB100 |
Max.1.0 MPa
(Vacuum: 1.3 x 10-6 kPa) |
|
Features |
- Cartridge type allows element replacement.
|
Disposable type
straight |
SFB300 |
Max.15 MPa
(Vacuum: 1.3 x 10-6 kPa) |
0.01 μm
(Filtration efficiency
99.99%) |
Disposable type
multiple disc |
SFC100 |
Max.1.8 MPa
(Vacuum: 1.3 x 10-6 kPa) |
|
Features |
- Compact disposable type for semiconductor industry
|
|
Clean Air Filter/Hollow Fiber Element SFD |
|
|
|
Series/CAD |
Type |
Operating pressure |
Filtration |
SFD100 |
Disposable type
(Irreplaceable element) |
MAX.1.0 MPa |
0.01 μm
(Filtration efficiency
99.99%) |
SFD200 |
Cartridge type
(Replaceable element) |
Features |
- Built-in hollow fiber element
- Pressure drop: 0.03 MPa (Inlet pressure 0.7 MPa, Max. flow rate)
- Conforms to RoHS reduction of environmentally detrimental chemicals.
|
|
|
|
Note) Inlet air conditions ISO 8573-1 Quality grade: Equivalent to 1.4.1 to 1.6.1 |
Series/CAD |
Fluid |
Set pressure |
Flow range L/min (ANR) |
LLB3 |
Clean air
N2gasNOTE) |
0.05 to 0.4 MPa |
5 to 100 |
LLB4 |
50 to 500 |
Features |
- Clean equipment modularized (Reduction of piping labor/Space-saving)
- Clean air is easily available.
- Nominal filtration rating: 0.01 μm (Filtration efficiency 99.99%)
- Wetted parts: Grease-free, Silicon-free
- Assembled in a clean room, shipped and packed in a duplicate package
- 24 combinations available
|
|
|
|
|
Model/CAD |
Port size |
Drain discharge port size |
AD402 |
1/4,3/8,1/2 |
3/8 |
AD600 |
3/4,1 |
3/4,1 |
Features |
- Drainage is automatically discharged.
|
|
Motor Operated Auto Drain ADM |
|
|
|
Model/CAD |
Power consumption (W) |
Port size |
ADM200 |
4 |
IN |
3/8,1/2 |
OUT |
3/8 |
Features |
- Reliably discharges even highly viscous drainage.
|
|
Heavy Duty Auto Drain ADH |
|
|
|
Model/CAD |
Port size |
Auto drain |
ADH4000 |
1/2 |
Float type |
Features |
- Easy maintenance.
- Possible to maintain easily without removing pipes.
- No need for electric power and no waste of air.
- Float style drain allows automatic draining without electric power.
|
|
Differential Pressure Gauge GD40 |
|
|
|
Model |
Accuracy |
Scale range |
GD40 |
±0.006 MPa |
0 to 0.2 MPa |
Features |
- The pressure differential at the inlet and the outlet of compressed air equipment can be viewed at a glance on the pressure differential gauge.
It is ideal for the maintenance control of filters.
- Can be installed easily by merely providing a bypass circuit.
- Provided with a protective cover to prevent hazards.
|
|
