SMC Clamp Cylinder



单价 面议对比
询价 暂无
浏览 1003
发货 MalaysiaSelangorSubang Jaya预售,付款后14天内
品牌 SMC,CKD,GENTLE,JUFAN,CHANTO,UNIMECH,NCD,MINDMAN,KOGANEI,PARKER
型号 CKL1, MK, MK2, AS1,AS2,OS2
过期 长期有效
更新 2020-03-31 17:51

联系方式
加关注0

GENTLE AUTOMATIC SOLUTION SDN BHD - Pneumatic Equipment

Personal第1年
资料通过认证
保证金未缴纳
详细说明


Maintains a clamped or unclamped state when air
supply pressure drops or residual pressure is released

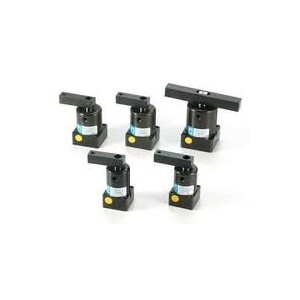

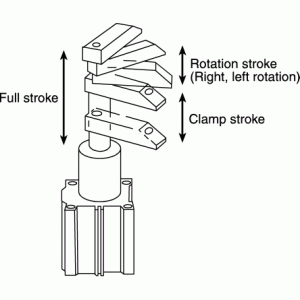

Rotary Clamp Cylinder   MK




TypeSeries/CADActionBore size (mm)StandardMK Double acting12,16,20,25,32,40,50,63FeaturesAllowable moment of inertia 3 times higher. (The same as the heavy-duty MK2 series.)Possible to mount small auto switches on 4 surfaces.Mounting dimensions are interchangeable with the MK series.Consolidated to the New MK series and renewed.


Rotary Clamp Cylinder   MK/MK2/MK2T




TypeSeries/CADActionBore size (mm)StandardMK Double acting12,16,20,25,32,40,50,63Heavy dutyMK2 20,25,32,40,50,63Double guideMK2T FeaturesPossible to design a small, compact equipment. Double guide type is with improved non-rotating accuracy using a guide roller in the rotating mechanism.


Pin Clamp Cylinder   C(L)KQG/C(L)KQP




TypeSeries/CADGuide pin shapeBore size (mm)Standard(Built-in standardmagnet)CKQG RoundDiamond50Standard(Built-in strongmagnet)CKQP With lock(Built-in standardmagnet)CLKQG With lock(Built-in strongmagnet)CLKQP FeaturesPositioning and clamping at one time.Compatible with a broad range of workpiece configurations. (55 types of guide pins)4 body types for a broad range of installation conditions.The height of clamping position according to a workpiece is selectable.


Pin Clamp Cylinder   CKQG32/CKU32




TypeSeriesGuide pin shapeBore size (mm)Compact cylinder typeCKQG32-X2081/X2082 Round32Plate cylinder typeCKU32-X2091/X2092 FeaturesCan be selected 2 types of clamping heightsNewly added guide pins for work pieces with φ8 and φ10 hole diameters29 mm thin, plate cylinder CKU32 added

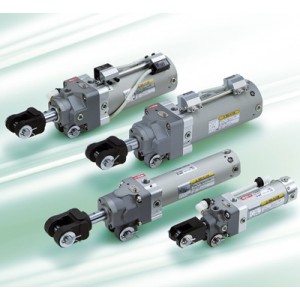

Clamp Cylinder   CKx1




TypeSeries/CADActionClevis width(mm)Bore size(mm)StandardCK1 Double acting16.5, 19.540, 50, 63Built-in standard magnet(Compatible withmagnetic field resistant auto switches)CKG1 Built-in strong magnet(Compatible withmagnetic field resistantauto switches)CKP1 FeaturesCompact cylinder with built-in cushion valve and speed controller valve eliminates an overhang from the tube cover.


Clamp Cylinder with Lock   CLK2




TypeSeries/CADActionClevis width(mm)Bore size(mm)Built-instandard magnetCLK2G Double acting12,16.5,19.532,40,50,63Built-instrong magnetCLK2P 16.5,19.540,50,63FeaturesClamp cylinder makes it possible to maintain a clamped or unclamped state when air supply pressure drops or residual pressure is released. (Single-directional lock)Increases the operation efficiency by eliminating an overhang from the tube cover with built-in cushion valve and plug.


Clamp Cylinder/Slim Style   C(L)KG/C(L)KP-X2095




TypeSeries/CADActionClevis width(mm)Bore size(mm)Standard(Built-in standard magnet)CKG-X2095 Doubleacting9, 12, 525, 32, 40Standard(Built-in strong magnet)CKP-X2095 With lock(Built-in standard magnet)CLKG-X2095 32,40With lock(Built-in strong magnet)CLKP-X2095 FeaturesThe smallest class of clamp cylinder in the world.φ25 is available.Weight: 380g, Length: 186.7mm(φ25, 50 stroke without speed controller or auto switch.)Weight reduced by up to 48%, total length reduced by 18%


For North America/Europe Power Clamp Cylinder   CKZ3




TypeSeries/CADArm opening angleSwitchBore size (mm)ForNorthAmericaCKZ3N 15º,30º,45º,60º,75º,90º,105º,120º,135ºTURCK/P&F50,63ForEuropeCKZ3T FeaturesAluminum body reduces weight by up to 39%.Unclamping angle 15º as standardComplies to NAAMS. (CKZ3N)75 arm variations available.(CKZ3N)12 arm variations available for each size.


For North America Power Clamp Cylinder   CKZ2N




Series/CADArm opening angleSwitchBore size (mm)CKZ2N 30º,45º,60º,75º,90º,105º,120º,135ºTURCK/P&Fφ50, φ63, φ80FeaturesConforming to the New NAAMS Standards (North American Automotive Metric Standards)138 arm styles are available.Spatter proof, Water resistant


For Europe Power Clamp Cylinder   CKZT




Series/CADArm opening angleSwitchBore size (mm)CKZT 30º,45º,60º,75º,90º,105º,120º,135ºTURCK/P&Fφ40, φ50, φ63, φ80FeaturesEach size has 3 arm styles.Spatter proof, Water resistant


For France Power Clamp Cylinder   CLKZ1R




Series/CADArm opening angleBore size (mm)CLKZ1R 15º,30º,45º,60º,75º,90º,105ºφ40, φ50, φ57FeaturesConforming to the CNOMO StandardConstant Clamping force regardless of workpiece thicknessUnclamp side end lockUnclamp side rubber bumper



Other Clamp Cylinders




DescriptionSeries/CADPin Clamp Cylinder(Compact body type)CKU Pin Shift CylinderCKQR Plate Clamp CylinderM(D)UKA Clamp CylinderCKGV Pin Shift CylinderCKZP frameClamp CylinderWRF100
