Who might need this machine?
1. Transformer and capacitor manufacturers
2. Transformer Service Companies
3. Transformer Owners

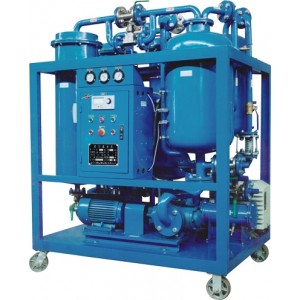

Our transformer oil treatment plants use vacuum dehydration technology, they are suitable for preparation of new insulating oil and purification of used oils for reuse.
The series capacity is from 600 L/H to 18,000 L/H. Trailer-type portable plants are available to allow on-site servicing of transformer oil. Plants are also designed for drying out of the coils of transformer by hot oil circulation and oil filling under vacuum.
The plant mainly consists of 4 systems. OIL TRANSFER SYSTEM, HEATING SYSTEM, FILTRATION SYSTEM AND VACUUM SYSTEM, which are interlocked to enable the plants to work automatically, little attention is required once the purifier is started.
|
After one pass
|
After three passes
|
|
|
Water content
|
< 5 ppm
|
< 3 ppm
|
|
Gas content
|
< 0.2%
|
< 0.1%
|
|
Vacuum inside vessel
|
< 2 mbar
|
< 0.8 mbar
|
Application:
The ZYD series is specifically designed for filtering and dehydrating new or used insulating fluids such as switch oil, transformer oil, cable oil, etc. Also it is a good choice for vacuum filling oil into transformers and dry out internal coils & windings. The machine is suitable for industries where regular insulating oil treatment is required.
