3.0/1.0 micron filtration of oil, water and dirt particles.
AFF grade is mounted in the main air line to remove liquid oil, water and particles of all kinds. It is used as a prefilter before a refrigerated air dryer. It is also used together with high performance filters AM or AMD.
AFF is supplied as standard with internal auto drain and differential pressure indicator.

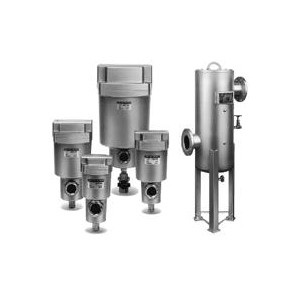

AFF filters have cast aluminium bodies for up to 3" screwed pipe (flow at 700kPa and 20°C). Also available as floor standing units with flanged connections and carbon steel bodies.
For main line removal of large particles, rust etc., 125 micron stainless steel mewh element is optional for AFF 125, 150 and 220A.
All floor mounted models include a prefiltration chamber which ensures very low pressure drop and long element life.
AMD Micro Mist Separator
0.01 micron liquid, particle and oil aerosol removal coalescing filter
AMD grade will remove particles, liquid and oil aerosols of more 0.01µ. It is used as a final filter in industrial application. It is recommended as a pre filter of the air supply to presicion instruments or for clean room applications.
AMD is supplied as standard with internal autodrain and differential pressure indicator. AMD is also available in 316 S/S.
A Series Filter:
AFF Mainline Filter
AMD Micro Mist Separator
AFF Mainline Filter
Model
AFF2B -02D-T
AFF4B -03D-T
AFF8B -04D-T
AFF11B -06D-T
AFF22B -10D-T
AFF37B -14D-T
AFF75B -20D-T
AFF125B -20C
AFF150B -25C
AFF220B -30C
AFF275B -30C
Flow *Note1
L/S
5.0
12.5
25.0
36.6
58.3
100
200
318
448
613
730
CFM
10
26
53
73
123
212
424
675
954
1300
1483
Max Working Pressure (kPa)
1000
1000
1000
1000
1000
1000
1000
1600
1600
1600
1600
Max Temperature (°C)
60
60
60
60
60
60
60
120
120
120
120
Port Size (BSP)
1/4"
3/8"
1/2"
3/4"
1"
1·1/2"
2"
2"
2·1/2"
3"
3"
Element
AFF-EL 2B
AFF-EL 4B
AFF-EL 8B
AFF-EL 11B
AFF-EL 22B
AFF-EL 37B
AFF-EL 75B
AFF-EL 125B
AFF-EL 150B
AFF-EL 220B
AFF-EL 275B
*Note1: Flow at 700kPa and 20°C.
Filter performance(ISO8573.1) Particle size CI.3 Oil content CI.4
AMD Micro Mist Separator
Model
AMD
150
-02D-T
AMD
250
-03D-T
AMD
350
-04D-T
AMD
450
-06D-T
AMD
550
-10D-T
AMD
650
-14D-T
AMD
850
-20D-T
AMD
950
-20C
AMD
1050
-25C
AMD
1150
-30C
AMD
1250
-30C
Flow *Note1
L/S
3.3
8.3
16.6
33.3
58.3
100
200
318
448
613
730
CFM
7
17
35
70
123
212
424
675
954
1300
1530
Max Working Pressure (kPa)
1000
1000
1000
1000
1000
1000
1000
1600
1600
1600
1600
Max Temperature (°C)
60
60
60
60
60
60
60
120
120
120
120
Port Size (BSP)
1/4"
3/8"
1/2"
3/4"
1"
1·1/2"
2"
2"
2·1/2"
3"
3"
Element
AMD-EL 150
AMD-EL 250
AMD-EL 350
AMD-EL 450
AMD-EL 550
AMD-EL 650
AMD-EL 850
AMD-EL 950
AMD-EL 1050
AMD-EL 1150
AMD-EL 1250
*Note1: Flow at 700kPa and 20°C.
Filter performance(ISO8573.1) Particle size CI.1 Oil content CI.1
