EP3000 NEW COMPLETE SOLUTIONS Access Control System
Main Software Key Features
- Complete attendance data for exportation to HR, Payroll or third party software
- Managing details of users effectively
- Setting of Time Zone for Door Access
- Useful Online Data Monitoring
Click on thumbnails below for details
System Controller
Technical Specification
| Card Storage | 5,000 |
| Local Pin | 10 sets |
| Transaction Events | 10,000 |
| Operation Mode | Single Door Mode (In & Out Reader) Dual Door Mode (2 In Reader) Car Park Mode (In & Out Barrier) Emergency Door Mode (2 Door Monitoring) |
| Card Number Reading | 10 Digits |
| Anti-passback | Local and Global Anti-passback |
| Holidays | 60 |
| Time Set | 128 |
| Time Zone | 128 |
| Access Level | 128 |
| Facility Codes | Jantech 10 Sets Code |
| Support Keypad | LCD Keypad , HID, Rosslare |
| Doors Interlocking Capability | Yes |
| Provide Alarm Output | Yes |
| Supported Readers | RFID : 26 bits, 125 kHz MIFARE : MFIS50/S70 , 13.56MHz HID : HID 1326, 26 bits, 125 kHz |
| Communication | RS232/RS485, TCP/IP (EP 3000N only) |
| Operating Voltage | 9 VDC to 14 VDC |
| Operating Current | 500 mA |
| Operating Temperature | 0 ~ 66 °C |
| Dimension (PCB only) | W 155 mm x H 95 mm |
| MCU Speed | 16 bits 24MHz |
| Memory | 8MB Flash Memory, 512KB RAM |
| Supervised Input | 4 TTL Inputs for Door Operation 4 TTL Inputs for Operation Aux. Input |
| Output | 3 Relays Outputs, 2 Open Collector Outputs |
| On Board Buzzer | Yes |
| Internal Back Up Battery Surge Protection | Yes |
| Power Protection | Resettable Fuse |
| Built in Calendar | Yes |
| Built in Real Time Clock (with battery backup) | Yes |
| Built in Power Up Reset | Yes |
| Built in Watch Dog Reset | Yes |
Basic System Diagram
Host -PC Specification
| Processor | PENTIUM IV @ 2GHz (minimum) INTEL CORE 2 DUO (recommended) |
| RAM | 1 GB (minimum) 3 GB (recommended) |
| Hard Disk Space | 4 GB (minimum) |
| Optimum Screen Resolution | 1024 x 768 |
| Graphic Adaptor | 32 MB |
| Media Device | 48X DVD/CD-ROM Drive |
| Network Device | 10/100 Base-T Network Adapter |
| Operating System | Window 2000 Window XP Professional (SP1 - SP3) Window Vista Window 7 |
| Optional Peripherals | A sound card to play alert when an alarm event occurred A printer to print reports |

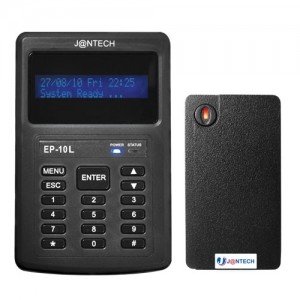

LCD Keypad Reader
| Technical Data | |
| Surface Finishing | ABS |
| Type of Scanner | RFID antenna |
| Dimension | W 90 mm x H 140mm x D 27mm |
| Card Technology | RFID : 26 bits, 125 kHz |
| Type of LCD | 2 x 20 Negative mode |
| Communications | |
| Method | RS 485 |
| Baud rates | 9600 |
| Wiegand | 26 bits |
| Temperature °C | -10 ~ 70 |
| Humidity (%) | 20 ~ 80 |
| Power Input | DC 12V 100mA |
Proximity Reader
| Technical Data | |
| Surface Finishing | Polycarbonate |
| Type of Scanner | RFID antenna |
| Dimension | W 55 mm x H 100 mm x D 15mm |
| Card Technology | RFID : 26 bits, 125 kHz |
| Communications | |
| Method | Wiegand Output |
| Baud rates | N/A |
| Wiegand | 26 bits |
| Temperature °C | -10 ~ 70 |
| Humidity (%) | 20 ~ 80 |
| Power Input | DC 12V 100mA |
Exit Touch Button
| Technical Data | |
| Operating Voltage | 10V to 20V DC, 15mA (4 wires System) or 5V with 1k Ohm Pull High, 1mA (2 wire system) |
| Power consumption | Less than 0.2W for 4-wire System Less than 0.005W for 2-wires System |
| Weight | Approx 80g |
| Dimension | W 86 mm x H 86 mm x D 11 mm |
