DIAMOND PORTABLE REBAR BENDERS

PORTABLE REBAR BENDERS
Portable table-type and hand-held benders for on-site work
DBD series benders are fast, accurate and easy to use: just set the bending angle and press the button.

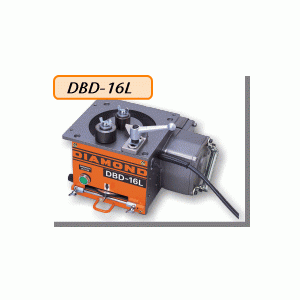

Rebar Bender Model DBD-16L			Rebar Bender Model DBD19L
	Extension working table(standard accessory)			Roller kit (standard accessory.
This small unit may be carried in one hand but has all the attributes of its bigger brethren and can make a 180 dgrees bend of a 16mm rebar in just 1.5 seconds.			For rebars of up to 20mm, the DBD-19L is similarly treasured. May we also suggest optional foot pedal and stand..

Rebar Bender Model DBD-25L			Rebar Bender Model DBD-25X
	-OPTION- Foot pedal			-OPTION- Stand
Both the DBD-25X and the smaller, lighter DBD-25L are prized field models because of their proven durability and ability to bend 25mm rebars. This strong electrical-mechanical bender has two presets angle locks for repeating the same angle bends. Optional foot pedal and stand are available for all DBD series.

Rebar Bender Model DBD-25H			Rebar Bender Model DBD-32X
	Fast and accurate bendhing.			Features counter and ammeter.
Our latest table-type bender is a heavy-duty model for rebars of up to 25mm 620N/mm2 tensile strength. It comes fully equipped with a set of nine bending rollers in a steel carrying case.			The largest single-phase bender. The lever-type angle selector can be set to accurately bend any angle from 0 - 180 degrees. (DBD-32X, 25H and 25X)

HandyBender Model HB-16W
	Bending rebar up to 16mm 490N/mm²(T.S) from 0-135 degrees in-place at the job site.		-Option- The optional 90 degree bennding die and collar make it simple to repeat 90 degrees bends without a guide.
The electro-hydraulic hand-held bender for use where table-type machines cannot go. An optional bending die and shoe cover (collar) are available for larger radius bends.

Rebar Straightener Model DBR-32WH
Pull Push Push A dual-purpase tool that cleanly straightens bent rebars and functions as a simple bender. Accepts any 490N/mm2 tensils strength rebar up to 32mm.
Rebar diameter Straightening capacity(degrees) Bending capacity(degrees) Push Pull Push Pull 13mm(1/2") up to 125 up to 121 up to 94 up to 92 16mm(5/8") 128 124 90 90 20mm(3/4") 130 126 90 90 25mm(12) 132 124 90 90 29mm(1 1/8") 140 135 90 90 32mm(1 1/4") 144 138 90 90 -Option- Large radius bending hook
