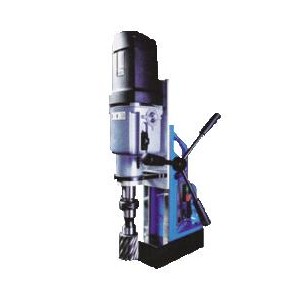

Newbroach Portable Magnetic Drill & Annular Cutter

单价	面议对比
询价	暂无
浏览	1102
发货	MalaysiaSelangorPetaling Jaya
品牌	Newbroach
过期	长期有效
更新	2012-08-14 01:07

联系方式

加关注0

NEWERA TOOLS & MACHINERY (M) SDN BHD

Company第8年

资料未认证

保证金未缴纳

Malaysia-Selangor-Petaling Jaya
上次登录 2014-06-05 •
new (Mr.)

进入主页更多Products

详细说明

NB-138 : Technical Data

Capacity Drilling	3 - 13mm diameter
Capacity Broaching	12 - 38 diameter
Arbor	19mm Weldon
Power Watts	1200
Magnetic holding power	1100kgs
Speeds no load rpm	450
Height	350mm
Width	120mm
Length	290mm
Weight	12.5kgs
Available	110 / 120 and 220 / 240 volts

The NB-138 is a lightweight drilling/broaching machine with 3-13mm drilling capacity and 12-38mm Broaching capacity, through steel up to 50mm thick.

Supplied complete in plastic case with 13mm drill chuck, arbor for cutters, safety chain and carabina hook, coolant spray bottle and hexagon keys.

Made in England completely from parts manufactured in the E.C.

NB-240 : Technical Data

Drilling Capacity	3 - 23mm diameter (Drill Bits)
Capacity Broaching	12 - 40 diameter (Broach Cutters)
Arbor Size	MT-2
Motor Power	1200Watts
Magnetic holding power	1100kg
Motor Speeds	450 RPM
Height	350mm
Width	120mm
Length	290mm
Weight	12.5kgs
Available	220 / 240volts and 50 / 60Hz

The NB-240 is aLight Weight Drilling & Broaching Machine. With MT-2 Arbor with 3 - 23mm Drilling Capacity Thru Steel Up To 50mm Thick.

Supplied Complete In Plastic Case With :-

16mm Drill Chuck, B18
Arbor For Cutters
Safety Chain With Carabina Hook
Coolant Bottle & Hexagon Keys

Made in England completely from parts manufactured in the E.C.

NB-370 : Technical Data

Drilling Capacity	3 - 32mm diameter (Drill Bits)
Capacity Broaching	12 - 65 diameter (Broach Cutters)
Arbor Size	MT-3
Motor Power	1500Watts
Magnetic holding power	2050kg
Motor Speeds	250 & 450 RPM
Height	400mm
Width	130mm
Length	330mm
Weight	19 kgs
Available	220 / 240volts and 50 / 60Hz

The NB-370 is a 2 Speed Heavy Duty Drilling & Broaching Machine.

With MT-3 Arbor with 3-32mm Drilling Capacity Thru Steel Up To 75mm Thick.

Supplied Complete In Plastic Case with : -

16mm Drill Chuck, B18
Arbor For Cutters
Safety Chain With Carabina Hook
Coolant Bottle & Hexagon Keys

Made in England completely from parts manufactured in the E.C.

NB-410 : Technical Data

Motor Watts	1700
Total Power Watts	1750
Speeds 4 speed: RPM 110/175/345/
Arbor	3 MT
Capacity Drills	3mm - 32mm
Capacity Cutters	12mm - 100mm
Mechanical Clutch	Built into motor
Magnetic Holding Power	2050 kgs
Height	480mm
Width	130mm
Length	340mm
Weight (aprox.)	19.5kgs
Available in 110/120 or 220/240 volt 50-60Hz

The NB-410 is a 4 Speed heavy Duty Drilling/milling machine with 32mm dia. ø drilling capacity and 100mm dia. ø broaching capacity using Newbroach cutters. Supplied in steel case with Arbor for cutter.
