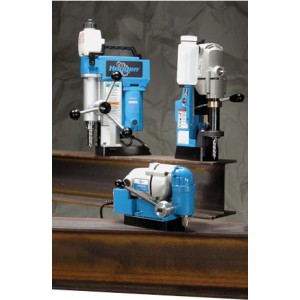

Hougen Portable Magnetic Drills
|
HMD111
Specifications
|
Electrical System |
230V, 50/60Hz, 4A, 960W |
Motor |
3.6A, 450 RPM |
Hole
Capacity |
Diameter
Depth |
1/2" - 1 - 1/16" (12mm - 27mm)
3/4" (19mm) |
Cutter / Mount |
Rotaloc with push & turn style shank |
Dimensions |
170mm H X 216mm W X 295mm L |
Magnet |
Base |
102mm W X 178mm L |
Strength
1" Plate |
Dead Lift
9252 N |
Drillpoint Breakaway
3776 N |
3/8" Plate |
5707 N |
2379 N |
Net Weight |
9.6 kg |
Shipping Weight |
12.6 kg |
|
|
The HMD111 is an ultra-low profile, lightweight drill with a patented quill feed arbor that eliminates gibs and slide/way adjustments. It uses Hougen RotaLoc Annular Cutters that are easy to change without extra tools. Handles operate from either side and with the handles removed, the hex head allows use of a socket wrench for ratcheting the feed. Handles lock carrying. For safety, the motor switch much be continuously pressed during operation and the motor will not run without the magnet switch "on". Rear mounted controls optimize ergonomics.
|
HMD115
Specifications
|
Electrical System |
120V, 50/60Hz, 8A, 960W |
Motor |
7.2A, 450 RPM |
Hole
Capacity |
Diameter
Depth |
1/2" - 1 - 1/16" (12mm - 27mm)
3/4" (19mm) |
Cutter / Mount |
Rotaloc™ with push & turn style shank |
Dimensions |
6-11/16" H X 8-1/2" W X 11-5/8" L |
Magnet |
Base |
4" W X 7" L |
Strength
1" Plate |
Dead Lift
2080 lb. |
Drillpoint Breakaway
849 lb. |
3/8" Plate |
1283 lb. |
535 lb. |
Net Weight |
21.3 lb. |
Shipping Weight |
27.8 lb. |
|
|
|
HMD151
Specifications
|
Electrical System |
230V, 50/60Hz, 4A, 920W |
Motor |
3.6A, 450 RPM |
Hole
Capacity |
Diameter
Depth |
1/2" - 1 - 3/8" (12mm - 35mm)
1" (25mm) |
Cutter / Mount |
Rotaloc™ with push & turn style shank |
Dimensions |
198mm H X 165mm W X 297mm L |
Magnet |
Base |
102mm W X 178mm L |
Strength
1" Plate |
Dead Lift
9630 N |
Drillpoint Breakaway
3269 N |
3/8" Plate |
5338 N |
2224 N |
Net Weight |
10.2 kg |
Shipping Weight |
14.3 kg |
|
|
The patented HMD151 is designed for fast , efficient holemaking in confined spaces. A powerful motor, heavy-duty, high-torque gearing along with the use of Hougen RotaLoc Plus Annular Cutters combine to allow for a broad range of applications. The rigid quill feed prevents tool vibration, eliminates gibs, slide/way adjustments and maintenance while providing a constant low profile. The unit is equipped with a removeable feed handle, which exposes a hex-head for ratcheting the feed in extremely close quarters.
|
HMD150
Specifications
|
Electrical System |
120V, 50/60Hz, 8A, 960W |
Motor |
7.2A, 450 RPM |
Hole
Capacity |
Diameter
Depth |
1/2" - 1 - 3/8" (12mm - 35mm)
1" (25mm) |
Cutter / Mount |
Rotaloc™ with push & turn style shank |
Dimensions |
7-13/16" H X 6-1/2" W X 11-11/16" L |
Magnet |
Base |
4" W X 7" L |
Strength
1" Plate |
Dead Lift
2165 lb. |
Drillpoint Breakaway
735 lb. |
3/8" Plate |
1200 lb. |
500 lb. |
Net Weight |
22.7 lb. |
Shipping Weight |
31.6 lb. |
|
|
|
HMD908
Specifications
|
Electrical System |
230V, 50/60Hz, 4A, 920W |
Motor |
3.6A, 450 RPM |
Hole
Capacity |
Diameter
Depth |
7/16" - 1 - 1/2" (12mm - 38mm)
2" (50mm) |
Cutter / Mount |
Rotabroach "12,000-Series" 3/4" Shank |
Dimensions |
417mm H X 183mm W X 210mm L |
Magnet |
Base |
79mm W X 167mm L |
Strength
1" Plate |
Dead Lift
7473 N |
Drillpoint Breakaway
3447 N |
3/8" Plate |
4999 N |
2722 N |
Net Weight |
12.5 kg |
Shipping Weight |
17.3 kg |
|
|
The HMD908 is light weight and compact. An economical drill with large capacities for its size. It uses Rotabroach "12,00-Series" Annular Cutters. Rear positioned controls are easily accessible and ergonomically designed. Feed handles can be easily switched to either side. You can also convert the drill into portable machine shop using many of the Hougen accessories.
Customer Voted #1 Most Popular Hougen Model
|
HMD904
Specifications
|
Electrical System |
120V, 50/60Hz, 8A, 960W |
Motor |
7.2A, 450 RPM |
Hole
Capacity |
Diameter
Depth |
7/16" - 1 - 1/2" (12mm - 38mm)
2" (50mm) |
Cutter / Mount |
Rotabroach "12,000-Series" 3/4" Shank |
Dimensions |
16-7/16" H X 7-3/16" W X 8-1/4" L |
Magnet |
Base |
3-1/8" W X 6-9/16" L |
Strength
1" Plate |
Dead Lift
1680 lb. |
Drillpoint Breakaway
775 lb. |
3/8" Plate |
1124 lb. |
612 lb. |
Net Weight |
27.5 lb. |
Shipping Weight |
38.1 lb. |
|
|
|
HMD909
Specifications
|
Electrical System |
230V, 50/60Hz, 5.6A, 1288W |
Motor |
5.2A, 350 RPM |
Hole
Capacity |
Diameter
Depth |
7/16" - 2 - 1/16" (12mm - 52mm)
3" (76mm) |
Cutter / Mount |
Rotabroach "12,000-Series" 3/4" Shank |
Dimensions |
521mm H X 208mm W X 349mm L |
Magnet |
Base |
89mm W X 178mm L |
Strength
1" Plate |
Dead Lift
11,120 N |
Drillpoint Breakaway
4715 N |
3/8" Plate |
6005 N |
3113 N |
Net Weight |
20 kg |
Shipping Weight |
24.2 kg |
|
|
The HMD909 offers a gravity feed coolant bottle, and the power to drill 52mm diameter holes up to 75mm deep without bogging down too deep in the hole. The HMD909 has reversible feed handles and Hougen safety features built in, including the safety switch LED.
|
HMD914
Specifications
|
Electrical System |
120V, 50/60Hz, 11.2A, 1344W |
Motor |
10.5A, 350 RPM |
Hole
Capacity |
Diameter
Depth |
7/16" - 2 - 1/16" (12mm - 52mm)
3" (76mm) |
Cutter / Mount |
Rotabroach "12,000-Series" 3/4" Shank |
Dimensions |
20-1/2" H X 8-3/16" W X 13-3/4"L |
Magnet |
Base |
3-1/2" W X 7" L |
Strength
1" Plate |
Dead Lift
2510 lb. |
Drillpoint Breakaway
1065 lb. |
3/8" Plate |
1358 lb. |
720 lb. |
Net Weight |
44 lb. |
Shipping Weight |
53.3 lb. |
|
|
|
HMD916
Specifications
|
Electrical System |
230V, 50/60Hz, 5.6A, 1288W |
Motor |
5A, 120/332 RPM |
Hole
Capacity |
Diameter
Depth |
3/4" - 3 - 1/16" (19mm - 77mm)
3/4" (76mm) |
Cutter / Mount |
Rotabroach "42/43,000-Series" 1 - 1/4" Shank |
Dimensions |
667mm H X 254mm W X 451mm L |
Magnet |
Base |
127mm W X 178mm L |
Strength
1" Plate |
Dead Lift
11,410 N |
Drillpoint Breakaway
6183 N |
3/8" Plate |
4804 N |
2090 N |
Net Weight |
31 kg |
Shipping Weight |
41.3 kg |
|
|
The HMD916 has the power to drill up to 77mm diameters thru up to 76mm thick material. It features high and low speed ranges to deliver extra torque when required. Optional gearing is available for up to seven speeds. The HMD916 uses Rotabroach "12,000-Series" Cutters. It has Hougen safety features built in including impactors points for improved torsional stability.
|
HMD915
Specifications
|
Electrical System |
120V, 50/60Hz, 11.2A, 1344W |
Motor |
10A, 120/332 RPM |
Hole
Capacity |
Diameter
Depth |
3/4" - 3 - 1/16" (19mm - 77mm)
3" (76mm) |
Cutter / Mount |
Rotabroach "42/43,000-Series" 1 - 1/4" Shank |
Dimensions |
26-1/4" H X 10" W X 17-3/4" L |
Magnet |
Base |
5" W X 7" L |
Strength
1" Plate |
Dead Lift
2565 lb. |
Drillpoint Breakaway
1390 lb. |
3/8" Plate |
1080 lb. |
470 lb. |
Net Weight |
69 lb. |
Shipping Weight |
91.1 lb. |
|
|
|
HMD111
Specifications
|
Electrical System |
230V, 50/60Hz, 4A, 920W |
Motor |
3.6A, 450 RPM |
Manual
Capacity |
Diameter
Depth |
7/16" - 1 - 1/2" (12mm - 38mm) 50mm |
Power Feed
Capacity |
Diameter
Depth |
7/16" - 1 - 1/4" (12mm - 32mm) 50mm |
Cutter / Mount |
Rotabroach "12,000-Series" 3/4" Shank |
Dimensions |
434mm H X 274mm W X 300mm L |
Magnet |
Base |
79mm W X 167mm L |
Strength
1" Plate |
Dead Lift
7473 N |
Drillpoint Breakaway
3447 N |
3/8" Plate |
4999 N |
2722 N |
Net Weight |
16.7 kg |
Shipping Weight |
Approx. 21.3 kg |
|
|
The latest innovation to the long-standing lineup of portable magnetic drills: The HMD928 features heavy duty hole making capacity, using Rotabroach Annular Cutters to produce holes from 12mm to 32mm diameter thru materials up to 50mm thick in power feed mode. The HMD928 is compact and lightweight at 16.7kg. and it incorporates solid state circuitry that monitors & adjusts the self-feed action to continuously maintain optimum drilling performance throughout the entire cut, providing consistent productivity, long tool life and excellent hole quality. The control panel also integrates Hougen's safety switch L.E.D.
|
HMD115
Specifications
|
Electrical System |
120V, 50/60Hz, 8A, 960W |
Motor |
7.2A, 450 RPM |
Manual
Capacity |
Diameter
Depth |
7/16" - 1 - 1/2" (12mm - 38mm) 50mm |
Power Feed
Capacity |
Diameter
Depth |
7/16" - 1 - 1/4" (12mm - 32mm) 50mm |
Cutter / Mount |
Rotabroach "12,000-Series" 3/4" Shank |
Dimensions |
17-1/8" H X 10-13/16" W X 11-3/16" L |
Magnet |
Base |
3-1/8"W X 6-9/16" L |
Strength
1" Plate |
Dead Lift
1680 lb. |
Drillpoint Breakaway
775 lb. |
3/8" Plate |
1124 lb. |
612 lb. |
Net Weight |
37 kg |
Shipping Weight |
Approx. 47 kg |
|
|
