BOLT & NUT SETTERS

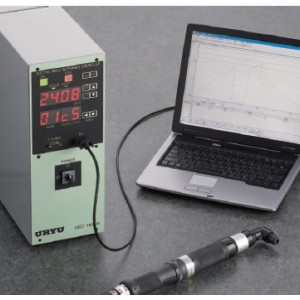

TORQUE CONTROL ELECTRIC ANGLE NUTRUNNER
URYU has developed UAN-F130 series Electric Angle Nutrunner by merging his fastening technology of pneumatic tools in high speed servo motor angle nutrunner. Enable high accurate fastening with compact designed controller.
Features
• Wide range speed control due to high speed motor.
• Compact design 170mm slim width controller.
• Data communications by interface to external systems via built-in RS232C board.
Functions
• High accurate fastening with Torque/Angle control.
• Displays Torque/Angle curves (displays these curves on front touch panel in touch panel type controller).
• Up to 16 multi-step fastening by programming with controller or through setup software of personal computer.
• Data storage capacity is 12,000 pieces. UEC-160AN 7-segment type : Download the stored data to your PC for statistical analysis of mean, σ, 3σ/mean, CP, and CPK. You can also graph the total data. UEC-TP160AN touch panel type: You can further process
these calculations on front touch panel without PC.
• Interlock with conveyor is possible due to terminals available in the rear panel.
