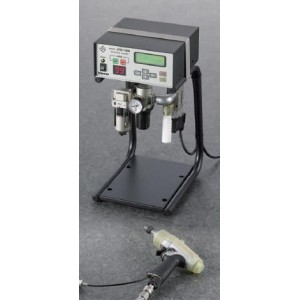

FASTENING COUNTER WITH POKA-YOKE UTM-1500 SERIES
URYU fastening counter UTM-1500 series count down the number of bolts or nuts precisely by detecting the pressure fluctuation generated inside the air motor section in usage of the air tool.
If all the required number of bolts or nuts is not fastened up accidentally, this fastening counter system controller informs you by both the display and the buzzer to ensure the perfect fastening.
Features
• Applicable to the pneumatic tools such as the oil pulse wrenches, impact wrenches etc. (Tool should be modified into the TM type because the controller basically detects the back pressure.)
• Counting down the fastening number, error proofing by the display and buzzer.
• Easy parameter setup of the controller by front key switches followed to the front panel LCD. (It is possible to set up the parameters through a personal computer as well.)
Functions
• Easy setup for the pressure values by the automatic setup feature.
• Up to 1500 tightening time and judgement data stored.
• Each buzzer volume level of fastening recognition, panel and NOK operation adjustable.
• Work select feature available for four different works with different numbers of fasteners.
• By equiping the external input/output terminal block (free format), inter lock with the line is possible.
• Parameters receivable/sendable, and wave data, memory data and the total numbers of fasteners receivable through PC. (Total numbers of pulse receivable in usage of the external pressure sensor assembly.)
• Measurement and display of the fastening time possible for the shut off tools.
• External pressure sensor assembly equipped for UTM-1500(CN) enables to count the
pulse number so that the pulse number control becomes possible other than the fastening time control. (The pulse number cannot be detected sometimes depending on a tool or working conditions.)
• Tool maintenance determined by the total numbers of fasteners or pulse possible. (external pressure sensor assembly needed.)
